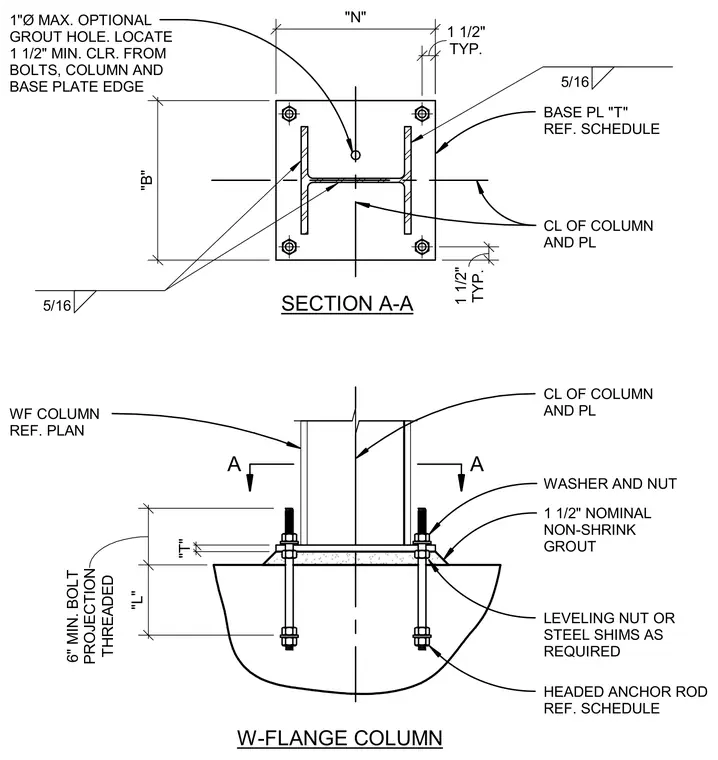

A wide-flange steel column bears on a steel base plate secured to a concrete foundation by headed anchor rods referenced in the schedule. Leveling nuts or steel shims are placed beneath the plate to establish elevation, with a one-and-a-half-inch nominal layer of non-shrink grout filling the space below. The anchor rods feature a six-inch minimum threaded bolt projection and receive washers and nuts at the top of the base plate. Fillet welds connect the column profile to the base plate on both sides.
A A WASHER AND NUT SECTION A-A CL OF COLUMN AND PL WF COLUMN REF. PLAN 5/16 1"Ø MAX. OPTIONAL GROUT HOLE. LOCATE 1 1/2" MIN. CLR. FROM BOLTS, COLUMN AND BASE PLATE EDGE HEADED ANCHOR ROD REF. SCHEDULE 5/16 BASE PL "T" REF. SCHEDULE CL OF COLUMN AND PL 1 1/2" NOMINAL NON-SHRINK GROUT LEVELING NUT OR STEEL SHIMS AS REQUIRED W-FLANGE COLUMN "N" TYP. 1 1/2" TYP. 1 1/2" "T" "L" THREADED 6" MIN. BOLT PROJECTION "B"
