Supplementary web members utilizing L2 1/2x2 1/2x3/16 angles are installed on each side of the joist to span from the applied load location to the nearest opposite chord panel point. For field-installed wood nailers, attachment options include four three-quarter inch diameter thrubolts through shop-installed pipe sleeves with oversize washers, or steel side plates measuring one-quarter inch by four inches by nine inches secured with two three-quarter inch diameter thrubolts per joist space. Fillet welds of three-sixteenth inch size are specified at indicated member connections. General notes outline threshold load criteria exempting minor loads under 250 pounds and requiring engineer notification for unlisted loads exceeding 500 pounds.

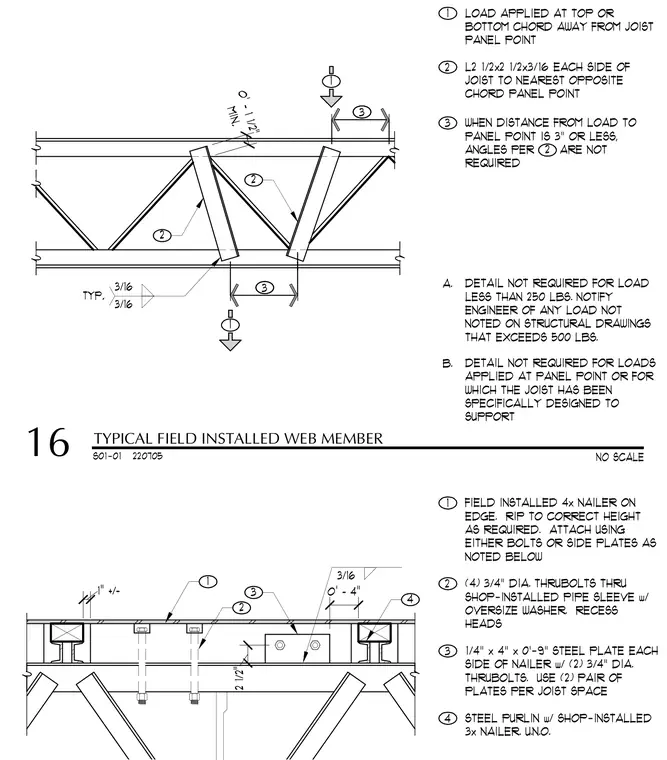

3 3 S01-01 220705 1 1 1 LOAD APPLIED AT TOP OR BOTTOM CHORD AWAY FROM JOIST PANEL POINT 2 L2 1/2x2 1/2x3/16 EACH SIDE OF JOIST TO NEAREST OPPOSITE CHORD PANEL POINT A. DETAIL NOT REQUIRED FOR LOAD LESS THAN 250 LBS. NOTIFY ENGINEER OF ANY LOAD NOT NOTED ON STRUCTURAL DRAWINGS THAT EXCEEDS 500 LBS. B. DETAIL NOT REQUIRED FOR LOADS APPLIED AT PANEL POINT OR FOR WHICH THE JOIST HAS BEEN SPECIFICALLY DESIGNED TO SUPPORT MIN. 0' - 1 1/2" 2 2 3/16 3/16 TYP. 3 WHEN DISTANCE FROM LOAD TO PANEL POINT IS 3" OR LESS, ANGLES PER ARE NOT REQUIRED 2 3/16 1 FIELD INSTALLED 4x NAILER ON EDGE. RIP TO CORRECT HEIGHT AS REQUIRED. ATTACH USING EITHER BOLTS OR SIDE PLATES AS NOTED BELOW 2 (4) 3/4" DIA. THRUBOLTS THRU SHOP-INSTALLED PIPE SLEEVE w/ OVERSIZE WASHER. RECESS HEADS 3 1/4" x 4" x 0'-9" STEEL PLATE EACH SIDE OF NAILER w/ (2) 3/4" DIA. THRUBOLTS. USE (2) PAIR OF PLATES PER JOIST SPACE 4 STEEL PURLIN w/ SHOP-INSTALLED 3x NAILER. U.N.O. 1 2 3 4 2 1/2" 0' - 4" 1" +/- NO SCALE TYPICAL FIELD INSTALLED WEB MEMBER 16
