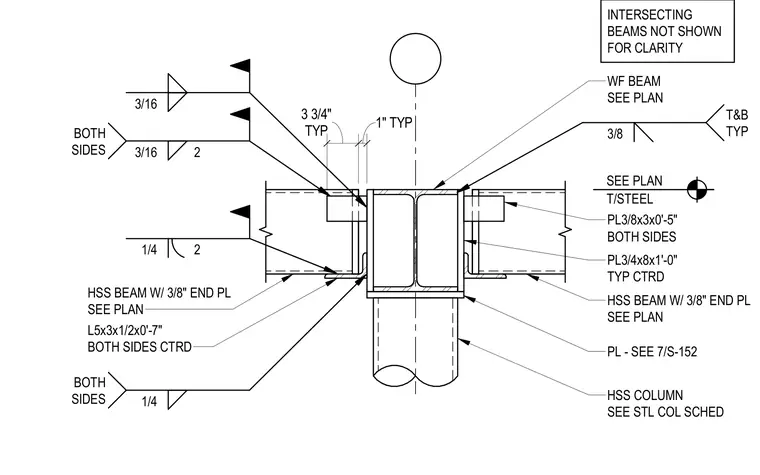

An HSS column supports intersecting wide-flange and hollow structural section beams configured per plan with welded plate connections. Three-eighths inch top and bottom plates weld the wide-flange beam to the column, complemented by three-eighths by three by five-inch plates and three-quarter by eight by twelve-inch plates centered on both sides. Angle sections measuring five by three by one-half by seven inches weld to both sides of the HSS beams with quarter-inch fillets. Three-sixteenths inch and quarter-inch fillet welds secure the connection assembly typical on both sides.
3/16 1/4 2 1/4 BOTH SIDES 3/16 2 BOTH SIDES PL3/8x3x0'-5" BOTH SIDES PL3/4x8x1'-0" TYP CTRD HSS COLUMN SEE STL COL SCHED HSS BEAM W/ 3/8" END PL SEE PLAN HSS BEAM W/ 3/8" END PL SEE PLAN L5x3x1/2x0'-7" BOTH SIDES CTRD INTERSECTING BEAMS NOT SHOWN FOR CLARITY T/STEEL SEE PLAN TYP 3 3/4" 1" TYP 3/8 T&B TYP WF BEAM SEE PLAN PL - SEE 7/S-152
