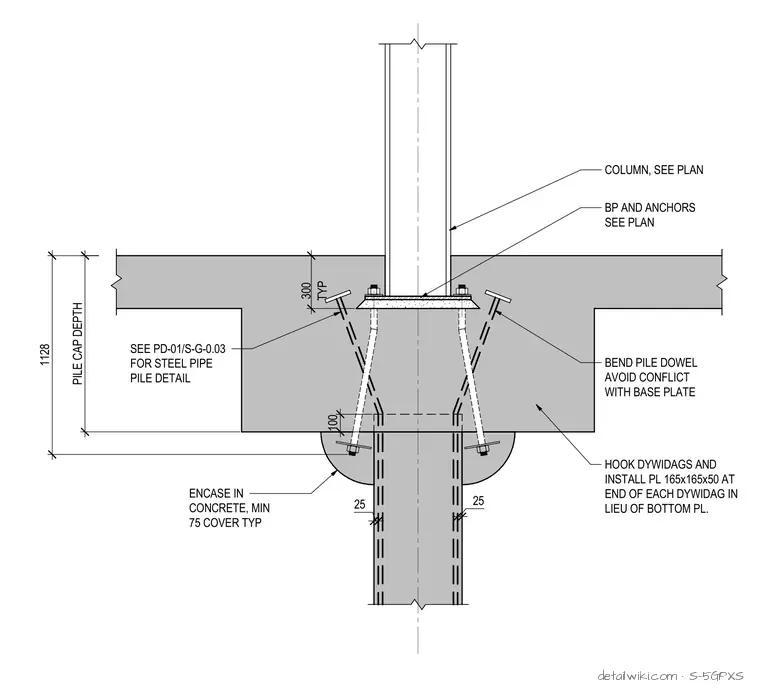

A structural steel column connects to a reinforced concrete pile cap via a base plate and anchor bolts sized per plan. Inclined Dywidag bars are anchored with a 165x165x50 millimeter plate at each end in lieu of a standard bottom plate to avoid conflict with the base plate. Pile dowels are bent to maintain clearance from the base plate anchorage. The steel pipe pile detail requires a minimum concrete cover of 75 millimeters.
100 PILE CAP DEPTH TYP 300 COLUMN, SEE PLAN BP AND ANCHORS SEE PLAN BEND PILE DOWEL AVOID CONFLICT WITH BASE PLATE HOOK DYWIDAGS AND INSTALL PL 165x165x50 AT END OF EACH DYWIDAG IN LIEU OF BOTTOM PL. 25 25 SEE PD-01/S-G-0.03 FOR STEEL PIPE PILE DETAIL ENCASE IN CONCRETE, MIN 75 COVER TYP 1128
