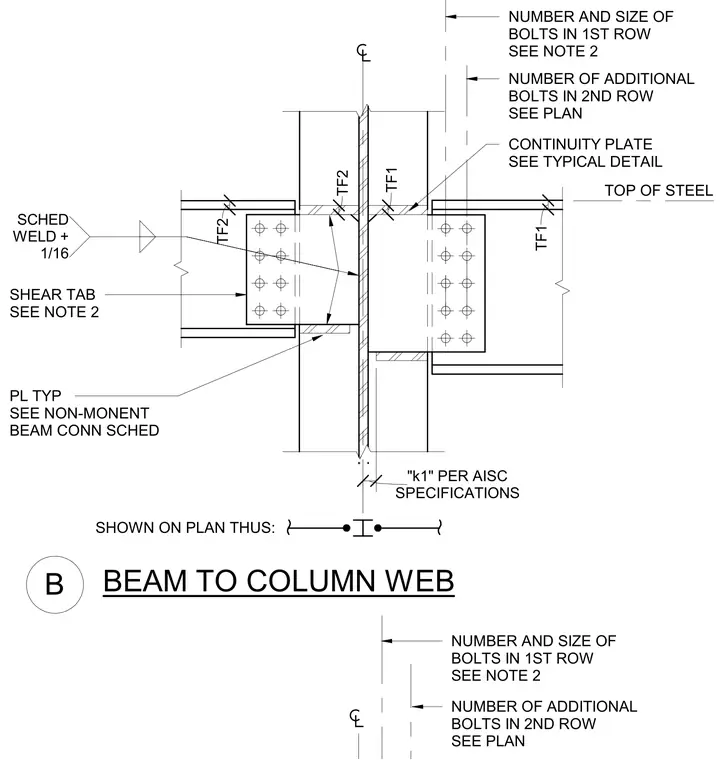

A steel beam connects to the web of a supporting steel column using a welded shear tab bolted to the beam web. The connection utilizes bolts in configured rows sized per the structural schedule, with the shear tab welded to the column flange. Continuity plates are aligned with the beam flanges on both sides of the column web. Clearances and dimensions conform to AISC specifications including the k1 distance.
NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 SHEAR TAB SEE NOTE 2 SHOWN ON PLAN THUS: TOP OF STEEL B BEAM TO COLUMN WEB NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN SCHED WELD + 1/16 TF2 TF2 TF1 TF1 SPECIFICATIONS "k1" PER AISC NUMBER AND SIZE OF BOLTS IN 1ST ROW SEE NOTE 2 NUMBER OF ADDITIONAL BOLTS IN 2ND ROW SEE PLAN CONTINUITY PLATE SEE TYPICAL DETAIL PL TYP SEE NON-MONENT BEAM CONN SCHED
