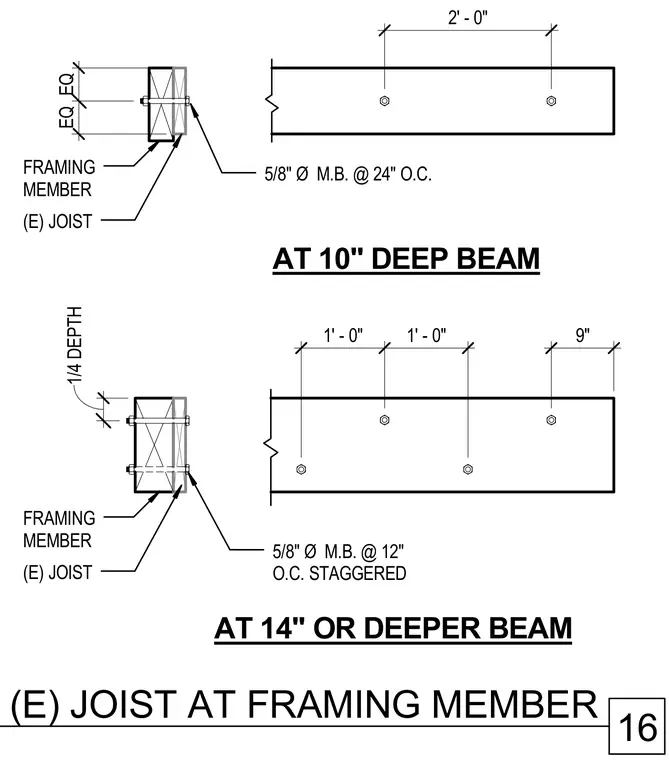

An existing wood joist bears against a framing member and is fastened with five-eighths inch diameter machine bolts spaced at twenty-four inches on center for 10-inch deep beams. For 14-inch or deeper beams, the connection utilizes five-eighths inch diameter machine bolts spaced at twelve inches on center staggered, positioned at one-fourth the total depth from the top and bottom edges.
5/8" Ø M.B. @ 12" O.C. STAGGERED 1' - 0" 1' - 0" 1/4 DEPTH 5/8" Ø M.B. @ 24" O.C. 2' - 0" 9" EQ EQ FRAMING MEMBER (E) JOIST AT 14" OR DEEPER BEAM AT 10" DEEP BEAM FRAMING MEMBER (E) JOIST 16 (E) JOIST AT FRAMING MEMBER
