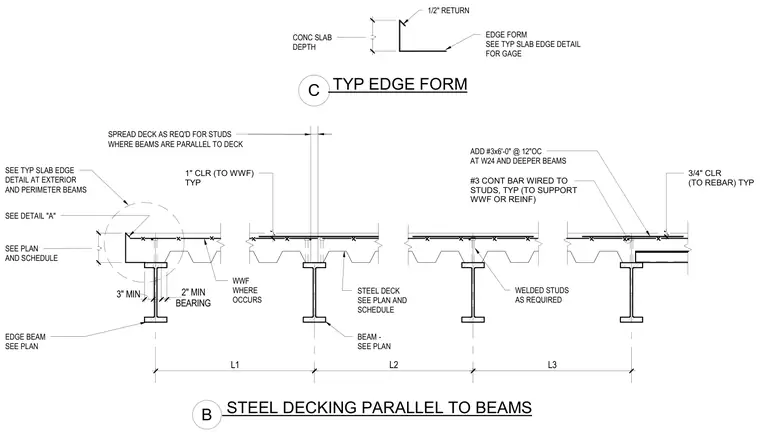

Concrete slab and steel decking run parallel to structural steel beams with a two-inch minimum bearing condition at edge beams and three-inch minimum bearing where applicable. Welded studs are placed as required along the beams with a continuous number three bar wired to the studs to support welded wire fabric or reinforcing. Additional number three bars at six-foot-zero-inches on center are added at W24 and deeper beams. The assembly maintains a one-inch clearance to welded wire fabric and a three-quarter-inch clearance to rebar. A typical edge form with a one-half-inch return is provided at the perimeter slab edge.
ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS STEEL DECKING PARALLEL TO BEAMS SPREAD DECK AS REQ'D FOR STUDS WHERE BEAMS ARE PARALLEL TO DECK STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) EDGE BEAM SEE PLAN WWF WHERE OCCURS BEAM - SEE PLAN 1" CLR (TO WWF) TYP CONC SLAB DEPTH 1/2" RETURN SEE DETAIL "A" SEE TYP SLAB EDGE DETAIL AT EXTERIOR AND PERIMETER BEAMS TYP EDGE FORM C L1 L2 L3 . 3" MIN BEARING 2" MIN SEE PLAN AND SCHEDULE . 3/4" CLR (TO REBAR) TYP . B EDGE FORM SEE TYP SLAB EDGE DETAIL FOR GAGE .
