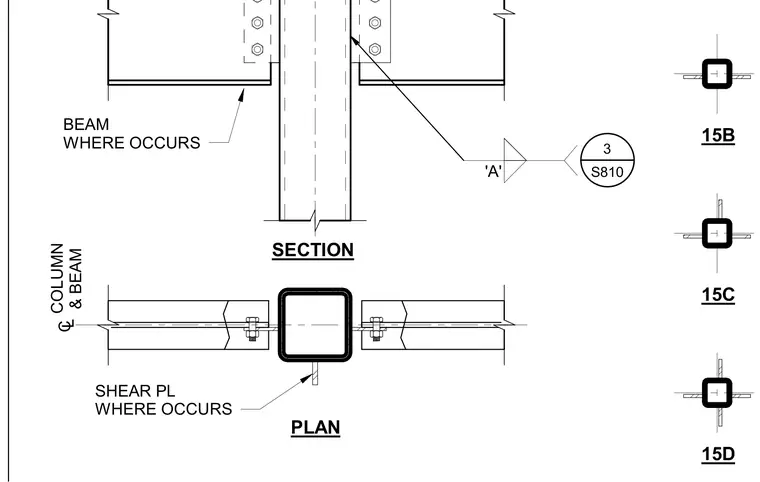

A steel beam connects to a hollow structural section column using a shear plate welded to the column web and bolted to the beam web. The plan view shows symmetrical framing conditions aligning with the column centerline. Shear plates are provided where indicated on the structural plans.
SHEAR PL WHERE OCCURS PLAN SECTION CL COLUMN & BEAM BEAM WHERE OCCURS 'A' 15D 15C 15B 3 S810
