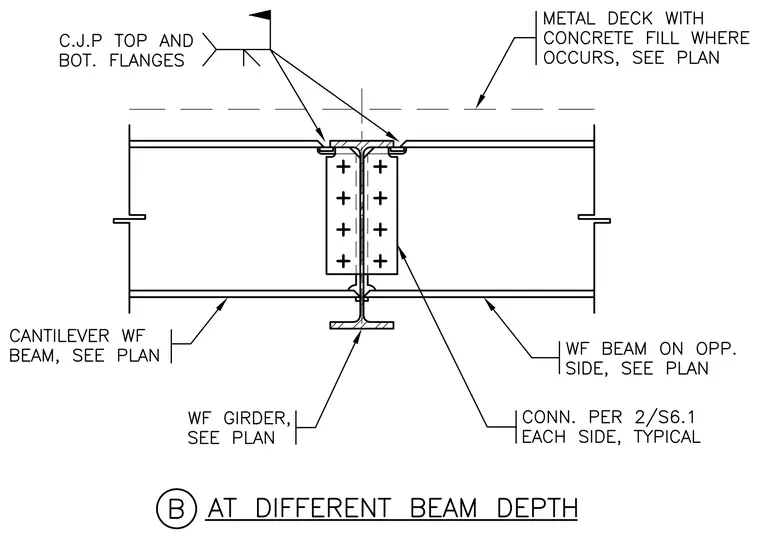

A cantilever wide flange beam connects to a wide flange girder with complete joint penetration welds at the top and bottom flanges. A wide flange beam on the opposite side frames into the girder with a bolted connection per detail 2/S6.1 on each side typical. Metal deck with concrete fill occurs above as sized per plan. The supporting wide flange girder is sized per plan.
