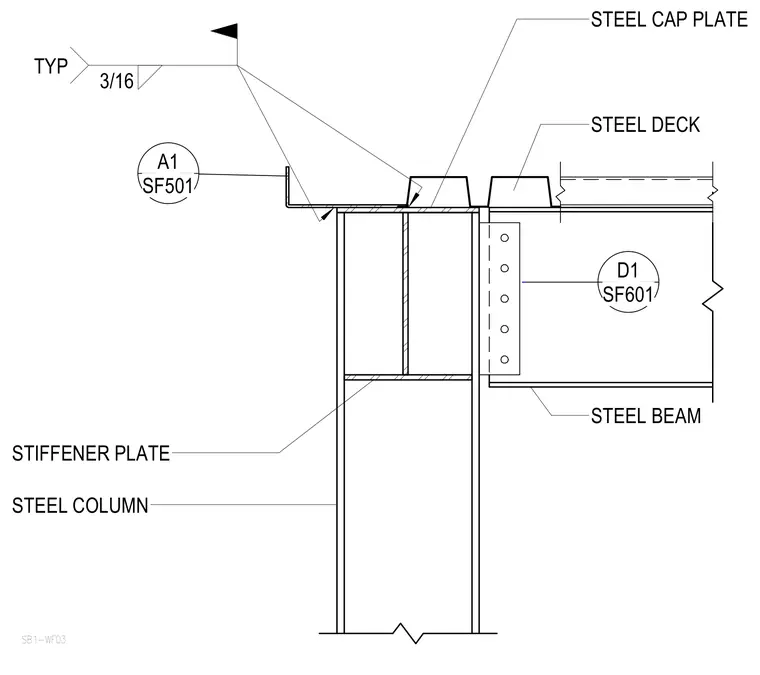

A steel beam connects to a steel column utilizing a cap plate and internal stiffener plate at the column web. A three-sixteenth-inch typical fillet weld secures the assembly with field welding indicated by the field weld symbol. Steel deck bears across the top of the column and beam assembly, with adjacent framing keyed to detail references SF601 and SF501.
SB1-WF03 STIFFENER PLATE STEEL COLUMN STEEL BEAM STEEL CAP PLATE STEEL DECK 3/16 TYP SF601 D1 SF501 A1
