Structural · S-5G9SJ

Typical CMU Jamb Reinforcing

Materials

Concrete Steel Masonry / CMU Metal (misc.)

Elements

Columns Beams Walls Floors / Slabs Decks Arches Site / Paving Anchors / Embeds Reinforcing

Connections

HSS Connection Beam-to-Beam Welded Connection Rebar Splice / Development Deck Attachment Embed Plate

About this detail

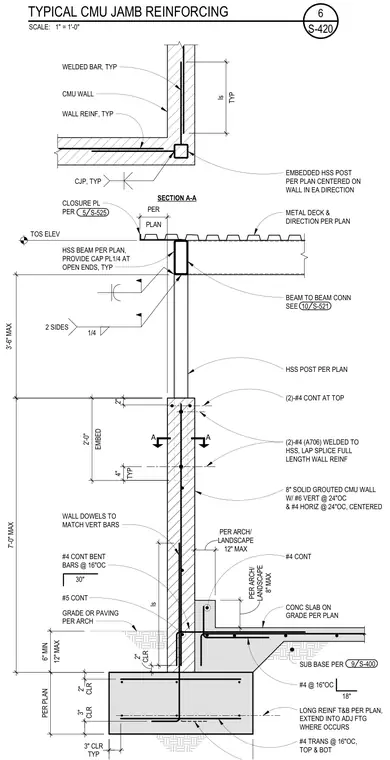

A reinforced concrete masonry unit wall sits on a continuous concrete footing with longitudinal and transverse rebar. An embedded hollow structural section post extends vertically through the wall and connects to a steel beam above, which supports a metal deck. The masonry wall features vertical and horizontal reinforcing bars with specific lap splices and grout spacing. Additional steel plates and fillet welds secure the hollow structural section post to the foundation dowels and structural framing.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
