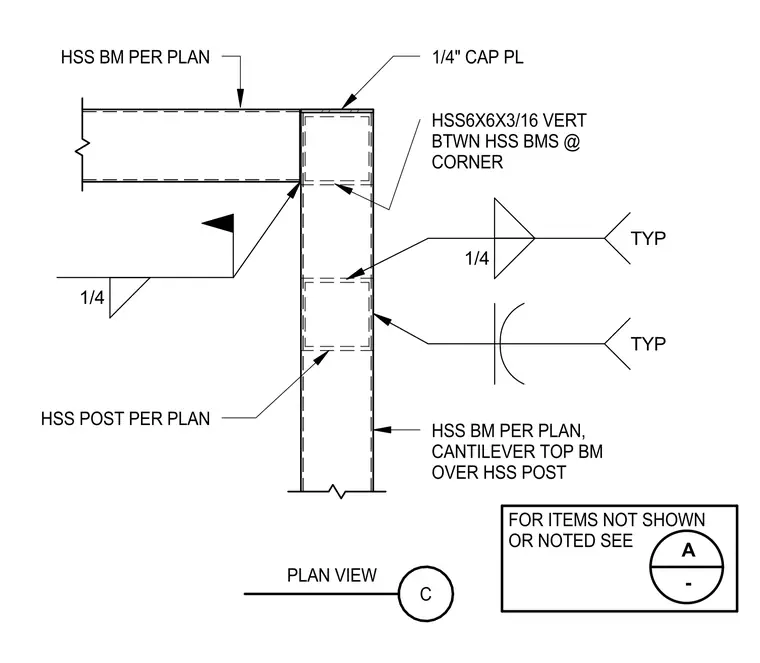

This structural detail shows a cantilever top hollow structural section beam framing over an HSS post per plan, capped with a one-quarter-inch thick cap plate. A vertical HSS6x6x3/16 member is positioned between the HSS beams at the corner. Typical one-quarter-inch fillet welds connect the steel elements. Refer to plan for unlisted items and sheet A for further details.
1/4" CAP PL HSS6X6X3/16 VERT BTWN HSS BMS @ CORNER 1/4 1/4 TYP TYP HSS BM PER PLAN, CANTILEVER TOP BM OVER HSS POST HSS BM PER PLAN HSS POST PER PLAN C PLAN VIEW FOR ITEMS NOT SHOWN OR NOTED SEE A -
