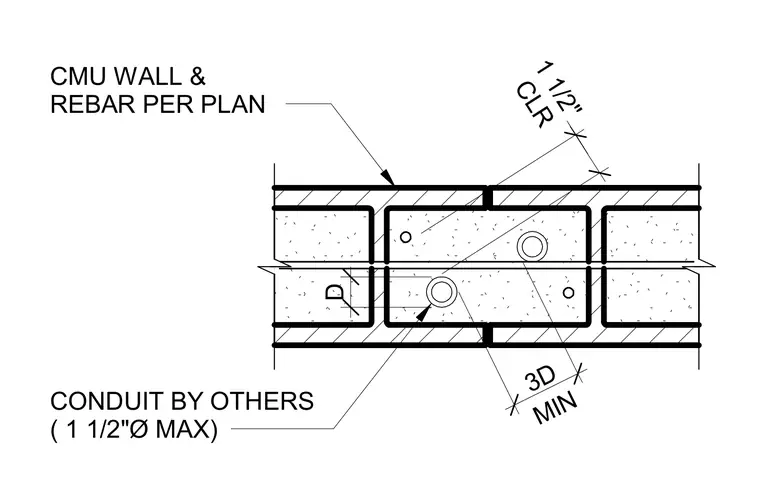

Electrical conduit with a maximum one and one-half inch diameter is routed through cells of a concrete masonry unit wall. The masonry wall and internal reinforcing steel are sized per plan. Minimum clearance requirements include three times the diameter spacing and one and one-half inches of edge clearance.
