Structural · S-5F68X

Cold-Formed Metal Stud Wall Connection to Concrete Slab and Steel Beam

Materials

Concrete Steel Cold-formed Steel Timber / Wood Metal (misc.)

Elements

Beams Walls Floors / Slabs Decks Anchors / Embeds

Connections

Deck Attachment Embed Plate

About this detail

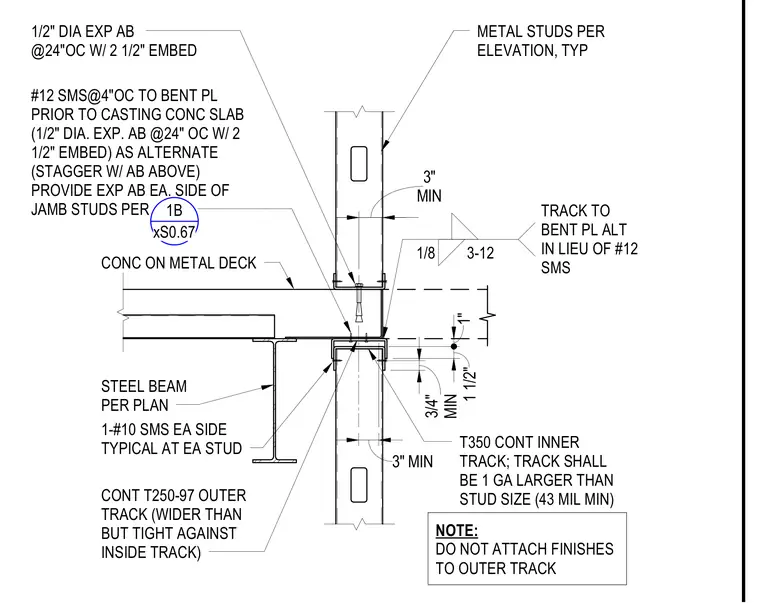

Cold-formed metal studs terminate at a concrete slab on metal deck supported by a steel beam per plan. The framing utilizes a continuous inner track sized one gauge larger than the stud size with a minimum of 43 mil, accompanied by a continuous outer track wider than but tight against the inside track, with a note to leave finishes left unattached to the outer track. Connection to the bent plate prior to casting the concrete slab is achieved using number 12 self-tapping metal screws at 4 inches on center, or alternatively with 1/2-inch diameter expansion anchor bolts at 24 inches on center with 2-1/2 inch embedment, staggered with expansion anchor bolts above, and provided on each side of jamb studs per plan. At the steel beam connection, one number 10 self-tapping metal screw is provided on each side typically at each stud.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
