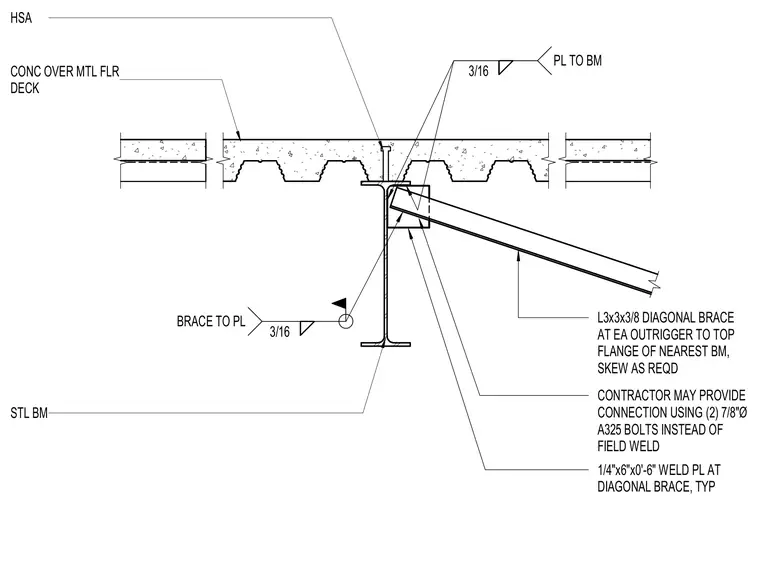

This structural detail connects an L3x3x3/8 diagonal kicker brace to the top flange of a steel beam supporting a concrete over metal floor deck. The brace attaches via a 1/4-inch by 6-inch by 0'-6" weld plate welded to the beam with a three-sixteenths-inch fillet weld, and to the brace with a matching three-sixteenths-inch fillet weld. As an alternative to the field weld, the contractor may provide the connection using two 7/8-inch-diameter A325 bolts. The brace skews as required at each outrigger to the nearest beam.
1/4"x6"x0'-6" WELD PL AT DIAGONAL BRACE, TYP L3x3x3/8 DIAGONAL BRACE AT EA OUTRIGGER TO TOP FLANGE OF NEAREST BM, SKEW AS REQD STL BM CONC OVER MTL FLR DECK HSA CONTRACTOR MAY PROVIDE CONNECTION USING (2) 7/8"Ø A325 BOLTS INSTEAD OF FIELD WELD 3/16 PL TO BM 3/16 BRACE TO PL
