Vehicle Barrier Column at Post-Tensioned Concrete Slab Edge

Materials

Concrete Steel

Elements

Columns Beams Floors / Slabs Arches Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

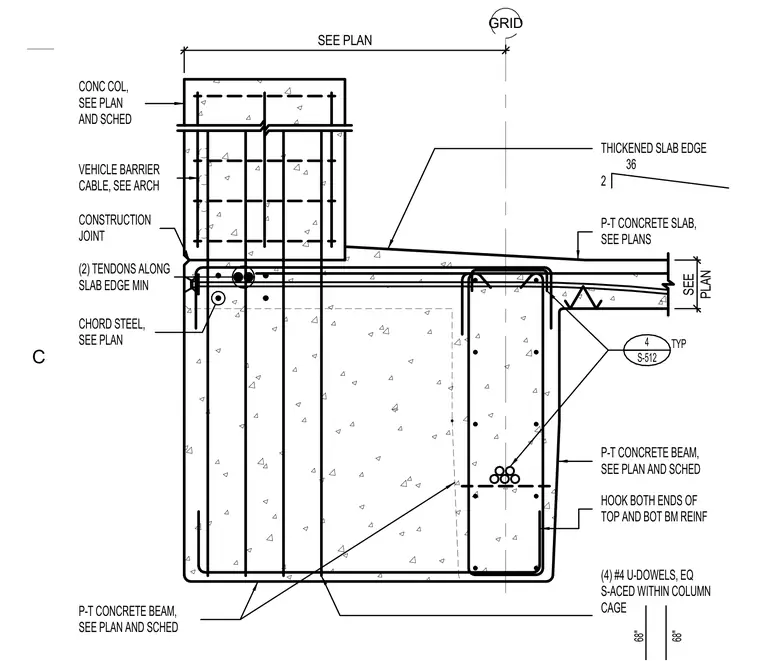

A reinforced concrete column sits atop a thickened post-tensioned concrete slab edge and post-tensioned concrete beam. Four number four U-dowels are spaced equally within the column cage and extend into the supporting beam and slab assembly. Two tendons run longitudinally along the slab edge to provide minimum chord steel per structural plans. A vehicle barrier cable is integrated into the column assembly on the exterior side. The supporting beam incorporates top and bottom reinforcing with hooked ends and supplementary post-tensioned tendons sized per plan.
