Structural · S-5EX8D

Typical Fall Arrest Post

Materials

Steel Timber / Wood

Elements

Columns Beams Floors / Slabs Decks Connections / Plates Reinforcing

Connections

HSS Connection Bolted Connection

About this detail

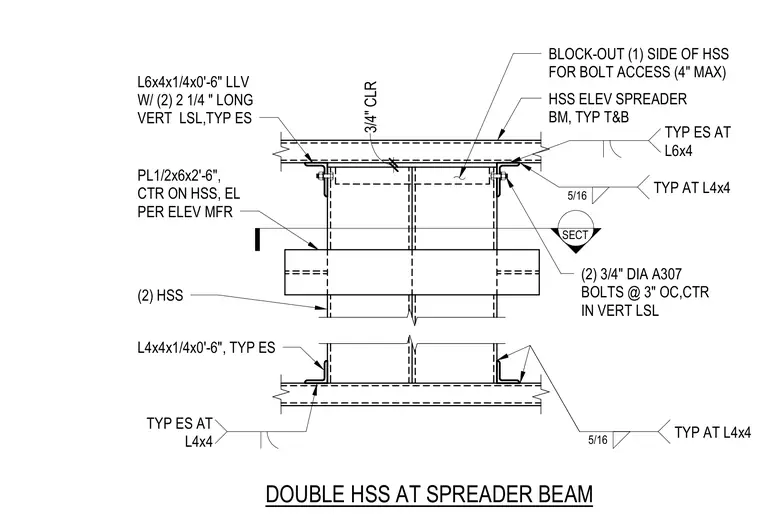

Double hollow structural section columns connect to a spreader beam using top and bottom angles welded with five-sixteenth inch fillet welds and secured with two three-quarter inch diameter ASTM A307 bolts spaced at three inches on center. Two one-quarter inch thick by four-inch long vertical LSL members connect via two two-and-a-quarter inch long vertical fasteners. A half-inch thick by six-inch wide by two-foot six-inch long plate centers on the hollow structural section, positioned with an elevation per the manufacturer. One side of the hollow structural section is block-out with a four-inch maximum clearance to allow for bolt access.
