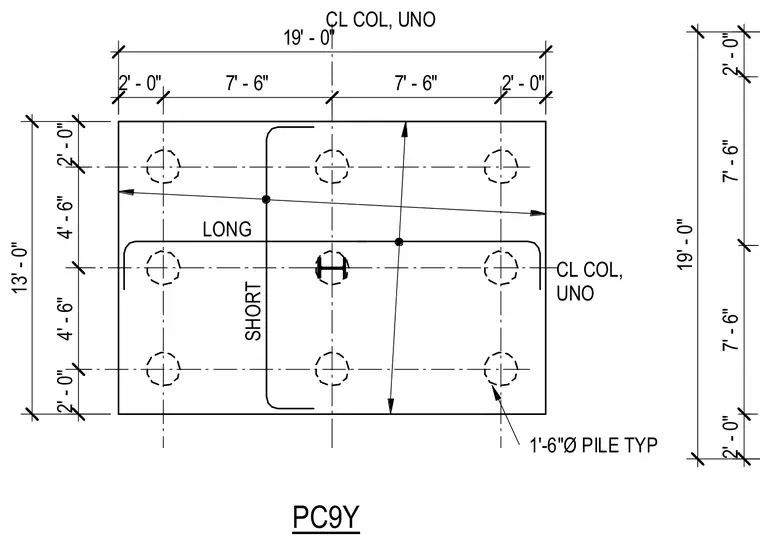

A rectangular concrete pile cap measuring nineteen feet by thirteen feet, supported by nine eighteen-inch diameter piles. The piles are arranged in a grid with typical spacings of seven feet six inches and four feet six inches. A column centerline is designated at the center of the pile cap, with edge distances noted as two feet typical. Reinforcing bars are designated in the long and short directions.
PC9Y CL COL, UNO CL COL, UNO 19' - 0" 2' - 0" 7' - 6" 7' - 6" 2' - 0" 2' - 0" 4' - 6" 4' - 6" 2' - 0" 13' - 0" 1'-6"Ø PILE TYP SHORT LONG 2' - 0" 7' - 6" 7' - 6" 2' - 0" 19' - 0"
