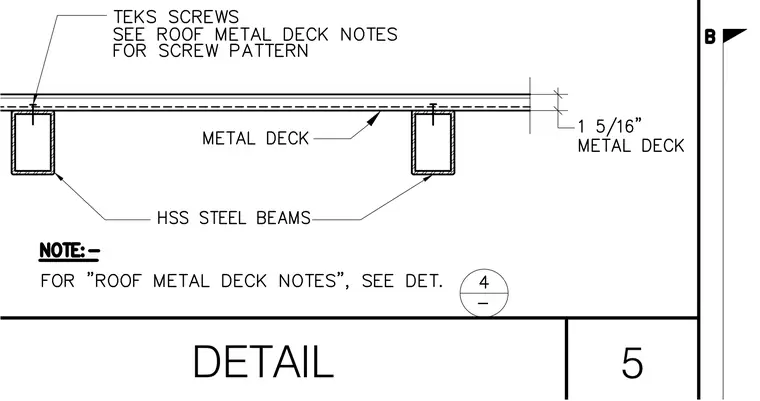

Metal deck bears directly across hollow structural section steel beams and is secured with self-drilling Teks screws. The screw pattern and installation requirements follow the referenced roof metal deck notes. The metal deck profile depth measures one and five-sixteenths inches.
