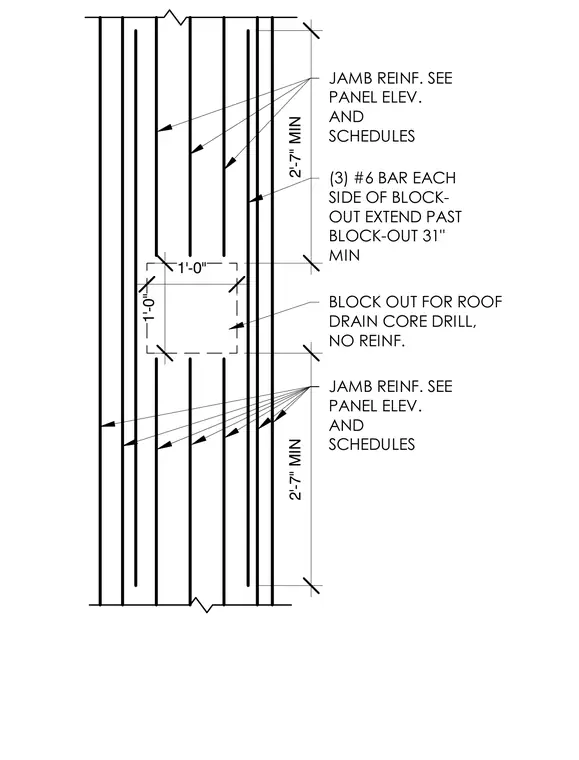

A one-foot by one-foot block-out is provided for a roof drain core drill with no reinforcing steel crossing the opening. Three number six bars are placed on each side of the block-out and extend thirty-one inches minimum past the opening. Additional jamb reinforcing is detailed per the panel elevation and schedules. The vertical reinforcing layout maintains two-foot seven-inch minimum extensions beyond the block-out zone.
2'-7" MIN 2'-7" MIN 1'-0" 1'-0" JAMB REINF. SEE PANEL ELEV. AND SCHEDULES BLOCK OUT FOR ROOF DRAIN CORE DRILL, NO REINF. (3) #6 BAR EACH SIDE OF BLOCK- OUT EXTEND PAST BLOCK-OUT 31" MIN JAMB REINF. SEE PANEL ELEV. AND SCHEDULES
