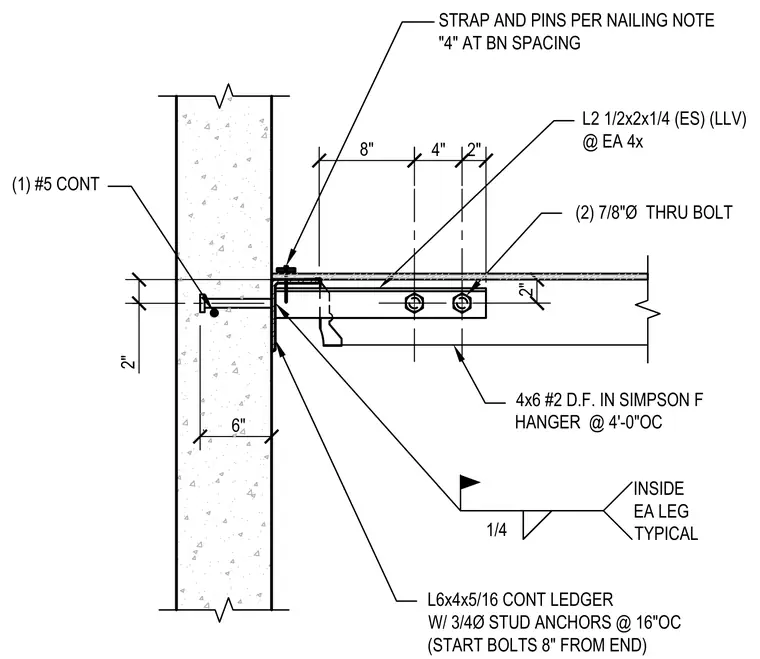

A continuous L6x4x5/16 steel ledger angle is anchored to a concrete wall using three-quarter-inch diameter stud anchors spaced at sixteen inches on center, starting bolts eight inches from the end. A continuous number five reinforcing bar runs horizontally within the wall. A four-by-six number two Douglas Fir timber member connects into a Simpson framing hanger spaced at four feet on center. An L2 1/2x2x1/4 angle connects each leg with two seven-eighths-inch diameter through bolts, secured with straps and pins per nailing notes.
L2 1/2x2x1/4 (ES) (LLV) @ EA 4x 4x6 #2 D.F. IN SIMPSON F HANGER @ 4'-0"OC L6x4x5/16 CONT LEDGER W/ 3/4Ø STUD ANCHORS @ 16"OC (START BOLTS 8" FROM END) (1) #5 CONT 2" 8" 6" (2) 7/8"Ø THRU BOLT 2" 2" 1/4 INSIDE EA LEG TYPICAL 4" STRAP AND PINS PER NAILING NOTE "4" AT BN SPACING
