Structural · S-5E7Q5

Joist Bearing At Steel Column

Materials

Steel Metal (misc.)

Elements

Columns Beams Roofs Decks

Connections

Welded Connection Bolted Connection Deck Attachment

About this detail

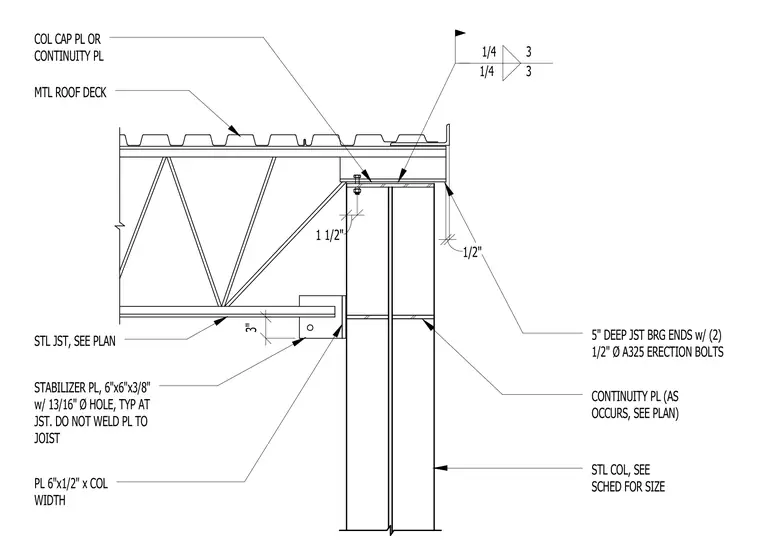

An open web steel joist bears onto a steel column sized per schedule with a column cap plate or continuity plate at the top. The five-inch deep joist bearing ends connect using two 1/2-inch diameter A325 erection bolts, while a metal roof deck spans above. A stabilizer plate measuring 6 inches by 6 inches by 3/8-inch with a 13/16-inch diameter hole is provided typically at the joist and left unwelded to the joist. A 6-inch by 1/2-inch plate matching the column width connects to the column flange, accompanied by continuity plates as required by plan.
