A wide-flange beam frames into the centerline of a wide-flange or hollow structural section column using a bolted cap plate connection. The cap plate matches the column width or beam flange width with a minimum thickness matching the beam flange and is fastened with four three-quarter-inch diameter bolts, or five-eighths-inch diameter bolts when the beam flange is under four inches. A full-height connection plate is installed at the beam web, paired with stiffener plates on each side where the column depth exceeds twelve inches, welded with quarter-inch fillet welds at each flange and the web.

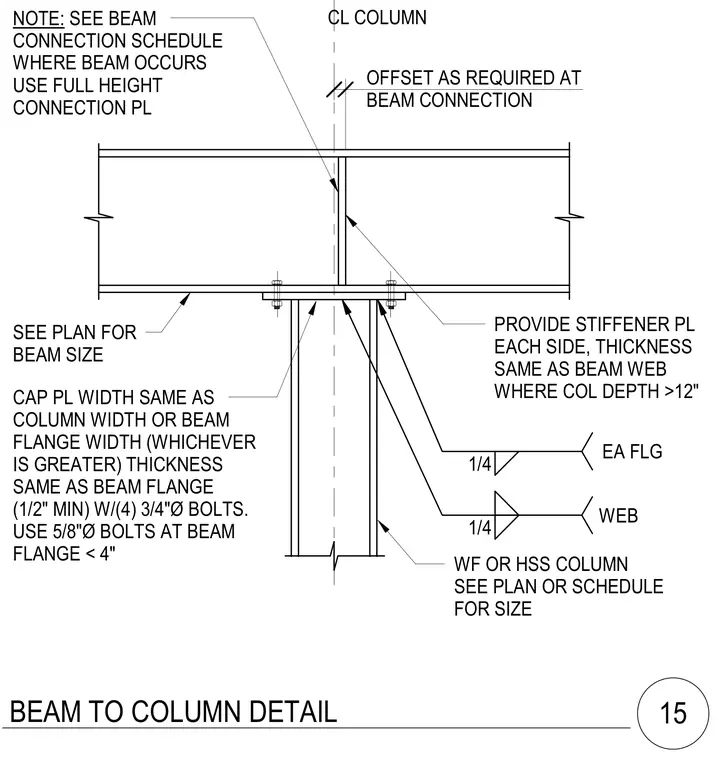

SEE PLAN FOR BEAM SIZE WF OR HSS COLUMN SEE PLAN OR SCHEDULE FOR SIZE NOTE: SEE BEAM CONNECTION SCHEDULE WHERE BEAM OCCURS USE FULL HEIGHT CONNECTION PL PROVIDE STIFFENER PL EACH SIDE, THICKNESS SAME AS BEAM WEB WHERE COL DEPTH >12" EA FLG OFFSET AS REQUIRED AT BEAM CONNECTION CL COLUMN 1/4 WEB 1/4 CAP PL WIDTH SAME AS COLUMN WIDTH OR BEAM FLANGE WIDTH (WHICHEVER IS GREATER) THICKNESS SAME AS BEAM FLANGE (1/2" MIN) W/(4) 3/4"Ø BOLTS. USE 5/8"Ø BOLTS AT BEAM FLANGE < 4" BEAM TO COLUMN DETAIL 15
