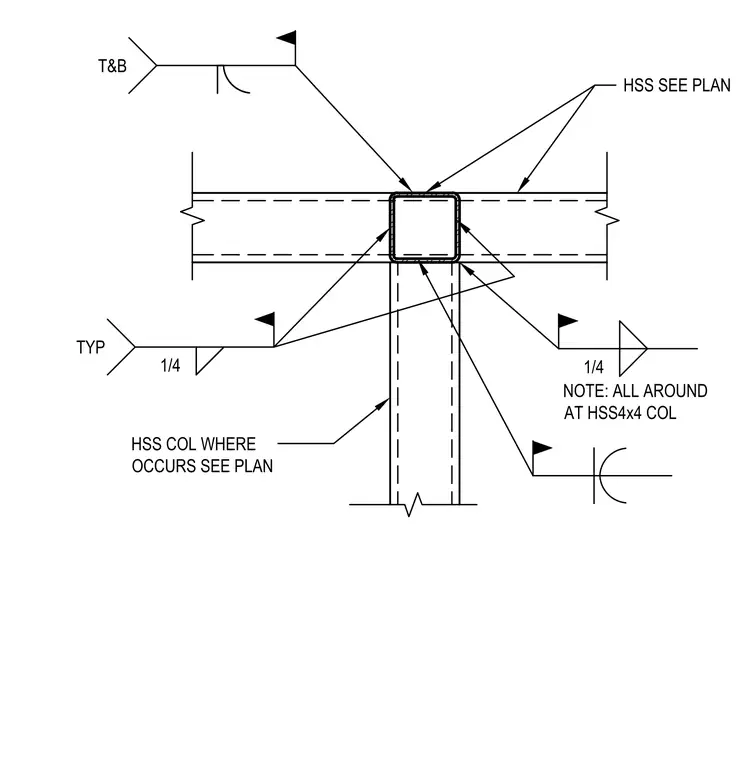

This connection joins a horizontal hollow structural section beam to a vertical hollow structural section column. The beam is welded to the column face using a one-quarter inch fillet weld applied all around the perimeter of the four-by-four hollow structural section column. The specific sizes for the hollow structural section beam and column are to be determined per the project plans. The connection is typical for structural steel framing where hollow structural sections are specified.
