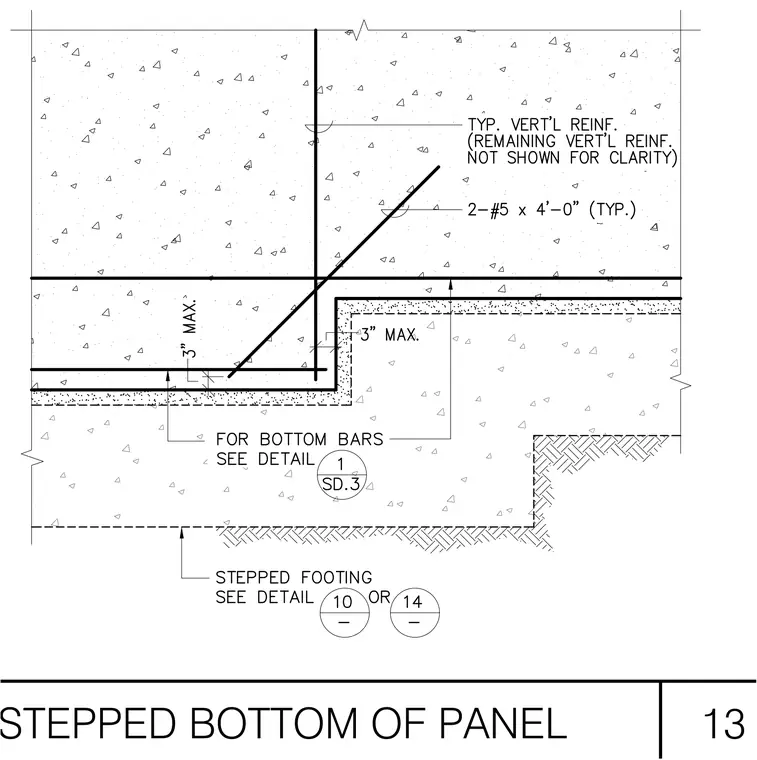

A stepped concrete panel bottom rests above a stepped footing transition. The assembly incorporates typical vertical reinforcement alongside additional diagonal reinforcing bars specified as two number five bars by four feet zero inches typical. A maximum three-inch step dimension governs the vertical and horizontal offset profile. Bottom bar placement references detail one on sheet SD point three, while the stepped footing foundation references detail ten or fourteen.
