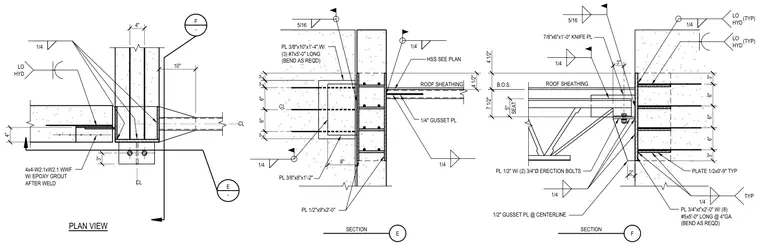

A strut connection incorporates a hollow structural section strut tied into a concrete assembly with welded steel plates. A 7/8 inch by 6 inch by 1 foot zero inch knife plate connects the structural members using two 3/4 inch diameter erection bolts and a 1/2 inch centerline gusset plate. Multiple steel plates, including a 3/8 inch by 10 inch by 1 foot 4 inch plate with three number seven by 5 foot zero inch long bent reinforcing bars and a 3/4 inch by t by 2 foot zero inch plate with eight number five by 5 foot zero inch long bars at 4 inch gauge, anchor the assembly. Low-hydrogen welding with typical quarter-inch fillet welds secures the steel components. Welded wire fabric sized 4x4-W2.1xW2.1 with epoxy grout is detailed after welding at the slab interface.
4" 4" 1/4 LO HYD CL 4x4-W2.1xW2.1 WWF W/ EPOXY GROUT AFTER WELD PLAN VIEW CL F - E - 10" 3" 6" 6" 3" 3" 6" 1/4 TYP 1/4 (TYP) 1/4 1/4 8" PL 1/2"x9"x2'-0" PL 3/8"x8"x1'-2" 5/16 CL LO HYD (TYP) LO HYD PL 3/8"x10"x1'-4" W/ (3) #7x5'-0" LONG (BEND AS REQD) PL 3/4"xt"x2'-0" W/ (8) #5x5'-0" LONG @ 4"GA. (BEND AS REQD) PLATE 1/2x0'-9" TYP F SECTION E SECTION 4 1/2" 7 1/2" 5" SEAT 2" 4 1/2" 3" 1/4 1/4 5/16 1/2" GUSSET PL @ CENTERLINE PL 1/2" W/ (2) 3/4"Ø ERECTION BOLTS 7/8"x6"x1'-0" KNIFE PL ROOF SHEATHING B.O.S. HSS SEE PLAN ROOF SHEATHING 1/4" GUSSET PL 2" 6" 6" 2" 2" 1/4
