Lateral stability is provided by angle braces connected between wide flange steel beams supporting a concrete slab over a metal deck. The bracing consists of single or double angles sized per plan at beam quarter points, spaced at a maximum of ten feet on center. Double angles are required when beam spacing exceeds ten feet on center and are tied together with stitch plates at four-foot intervals using three-quarter-inch diameter ASTM A307 bolts. Each end of the brace connects to gusset plates welded to the underside of the beam flanges with quarter-inch fillet welds and secured using three-quarter-inch diameter ASTM A307 bolts.

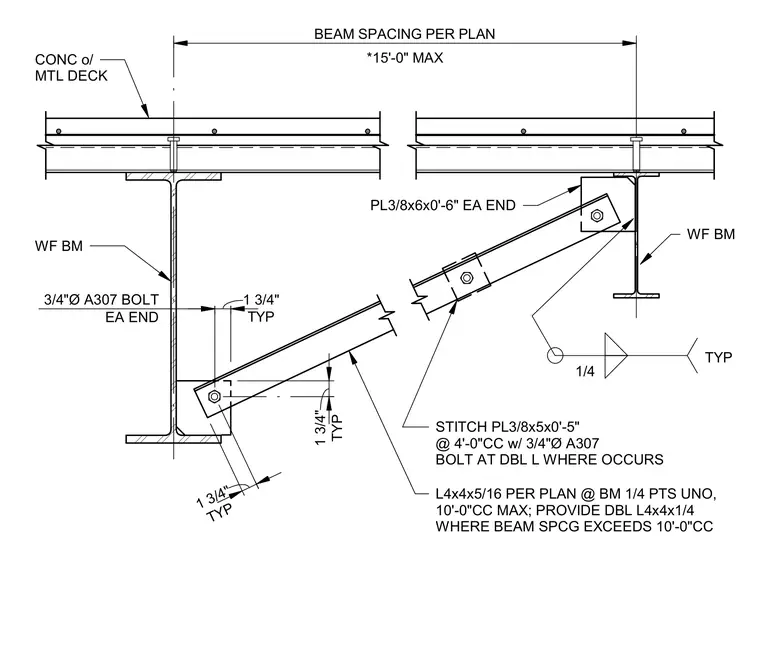

L4x4x5/16 PER PLAN @ BM 1/4 PTS UNO, 10'-0"CC MAX; PROVIDE DBL L4x4x1/4 WHERE BEAM SPCG EXCEEDS 10'-0"CC WF BM CONC o/ MTL DECK PL3/8x6x0'-6" EA END STITCH PL3/8x5x0'-5" @ 4'-0"CC w/ 3/4"Ø A307 BOLT AT DBL L WHERE OCCURS WF BM *15'-0" MAX BEAM SPACING PER PLAN 1/4 TYP TYP 1 3/4" TYP 1 3/4" TYP 1 3/4" 3/4"Ø A307 BOLT EA END
