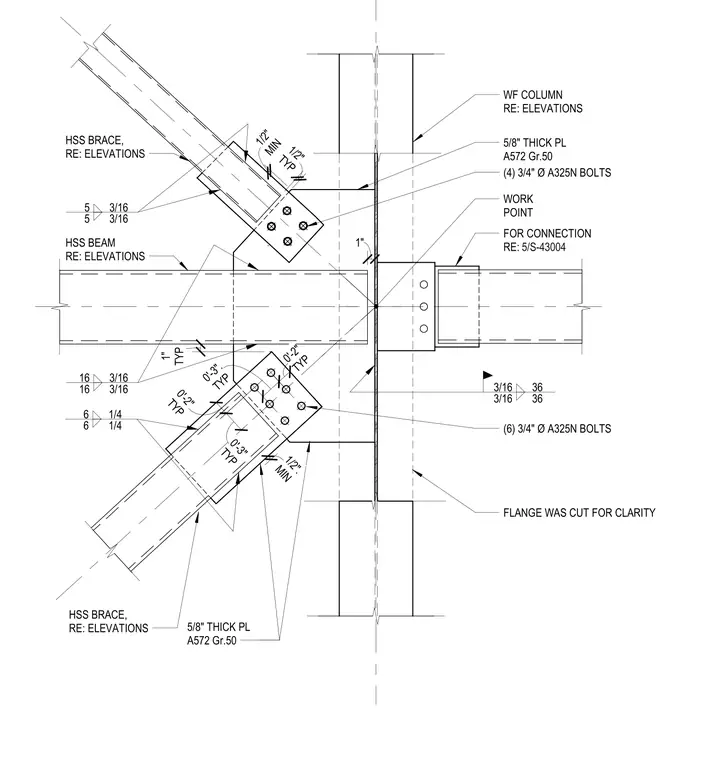

This connection utilizes two 5/8-inch thick ASTM A572 Grade 50 steel gusset plates welded to a wide flange column to support diagonal hollow structural section braces. The upper brace is secured to its gusset plate with four 3/4-inch diameter A325N bolts, while the lower brace is secured with six 3/4-inch diameter A325N bolts. Fillet welds of 3/16-inch and 1/4-inch size are specified for the gusset plate attachments, with specific spacing and edge clearances noted. A horizontal hollow structural section beam frames into the column web using a separate connection plate, with the column flange cut for clarity in the drawing. All brace connections maintain a minimum 1/2-inch clearance from the gusset plate edges.
Text on the drawing
HSS BRACE, RE: ELEVATIONS 5/8" THICK PL A572 Gr.50 TYP 0'-2" TYP 0'-2" TYP 0'-3" TYP 0'-3". 3/16 36 3/16 36 WF COLUMN RE: ELEVATIONS (6) 3/4" Ø A325N BOLTS WORK POINT 16 3/16 16 3/16 6 1/4 6 1/4 TYP 1" (4) 3/4" Ø A325N BOLTS 5/8" THICK PL A572 Gr.50 5 3/16 5 3/16 TYP 1/2" HSS BRACE, RE: ELEVATIONS MIN 1/2" FOR CONNECTION RE: MIN 1/2". HSS BEAM RE: ELEVATIONS FLANGE WAS CUT FOR CLARITY 1" 5/S-43004
