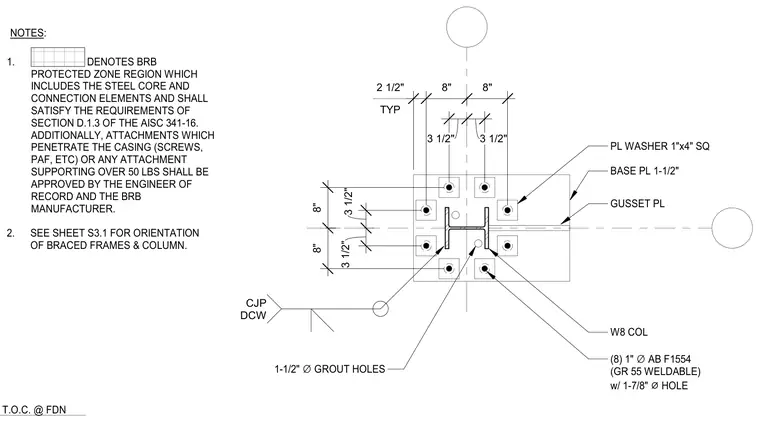

A W8 steel column base connection incorporates a gusset plate and a one-and-a-half-inch thick base plate. The assembly is anchored using eight one-inch diameter ASTM F1554 Grade 55 weldable anchor bolts equipped with one-inch by four-inch square plate washers and one-and-seven-eighths-inch diameter holes. One-and-a-half-inch diameter grout holes are provided in the base plate. Complete joint penetration welds connect the components according to designated requirements. Notes specify protected zone restrictions for the buckling-restrained brace and direct orientation coordination with sheet S3.1.
NOTES: 1. 2. SEE SHEET S3.1 FOR ORIENTATION OF BRACED FRAMES & COLUMN. DENOTES BRB PROTECTED ZONE REGION WHICH INCLUDES THE STEEL CORE AND CONNECTION ELEMENTS AND SHALL SATISFY THE REQUIREMENTS OF SECTION D.1.3 OF THE AISC 341-16. ADDITIONALLY, ATTACHMENTS WHICH PENETRATE THE CASING (SCREWS, PAF, ETC) OR ANY ATTACHMENT SUPPORTING OVER 50 LBS SHALL BE APPROVED BY THE ENGINEER OF RECORD AND THE BRB MANUFACTURER. T.O.C. @ FDN GUSSET PL BASE PL 1-1/2" W8 COL (8) 1" ∅ AB F1554 (GR 55 WELDABLE) w/ 1-7/8" ⌀ HOLE PL WASHER 1"x4" SQ 1-1/2" ∅ GROUT HOLES 8" 8" 3 1/2" 3 1/2" 3 1/2" 3 1/2" TYP 2 1/2" 8" 8" CJP DCW
