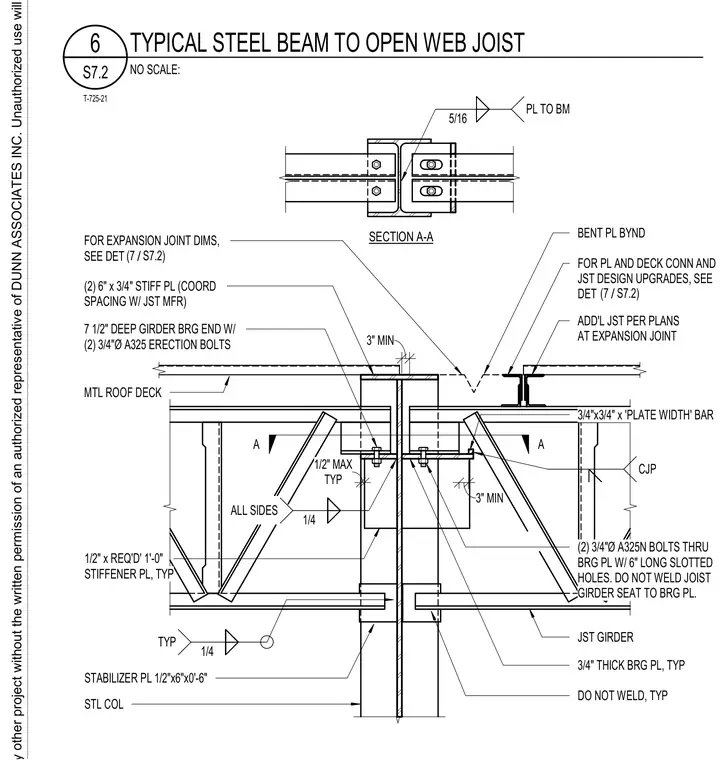

An expansion joint connection joins an open web joist girder to a structural steel column utilizing a three-quarter-inch thick bearing plate and two three-quarter-inch diameter A325N bolts through the bearing plate with six-inch long slotted holes. The joist girder seat remains unwelded to the bearing plate to allow movement. Additional stiffener plates measuring one-half-inch by one foot are provided typically, alongside a seven-and-a-half-inch deep girder bearing end secured by two three-quarter-inch diameter A325 erection bolts. A stabilizer plate measuring one-half-inch by six inches by six inches is included, and metal roof deck spans across the assembly.
A A DO NOT WELD, TYP JST GIRDER STABILIZER PL 1/2"x6"x0'-6" SECTION A-A ADD'L JST PER PLANS AT EXPANSION JOINT 7 1/2" DEEP GIRDER BRG END W/ (2) 3/4"Ø A325 ERECTION BOLTS MTL ROOF DECK STL COL BENT PL BYND (2) 6" x 3/4" STIFF PL (COORD SPACING W/ JST MFR) (2) 3/4"Ø A325N BOLTS THRU BRG PL W/ 6" LONG SLOTTED HOLES. DO NOT WELD JOIST GIRDER SEAT TO BRG PL. 1/2" x REQ'D' 1'-0" STIFFENER PL, TYP 3/4" THICK BRG PL, TYP 5/16 PL TO BM 1/4 ALL SIDES 1/4 TYP FOR PL AND DECK CONN AND JST DESIGN UPGRADES, SEE DET / (7 S7.2) FOR EXPANSION JOINT DIMS, SEE DET / (7 S7.2) 3" MIN 3/4"x3/4" x 'PLATE WIDTH' BAR CJP TYP 1/2" MAX 3" MIN NO SCALE: S7.2 6 TYPICAL STEEL BEAM TO OPEN WEB JOIST T-725-21
