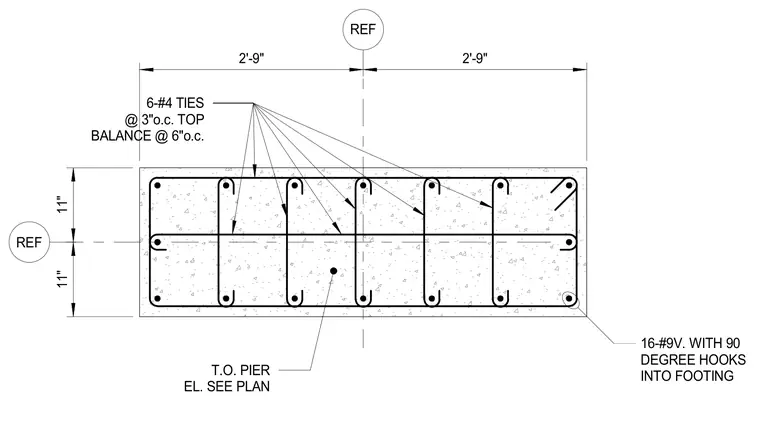

This concrete pier plan detail specifies sixteen vertical number nine reinforcing bars with ninety-degree hooks anchored into the footing. Six number four ties are spaced at three inches on center at the top, with the balance spaced at six inches on center. The pier geometry is referenced to plan dimensions and elevations.
16-#9V. WITH 90 DEGREE HOOKS INTO FOOTING 6-#4 TIES @ 3"o.c. TOP BALANCE @ 6"o.c. REF T.O. PIER EL. SEE PLAN REF 11" 11" 2'-9" 2'-9"
