Structural · S-5CDQ2

Concrete Stem Wall and Footing Foundation Detail

Materials

Concrete Steel Cold-formed Steel Timber / Wood

Elements

Walls Floors / Slabs Foundations / Footings Stem Walls Arches Insulation Connections / Plates Reinforcing

Connections

Rebar Splice / Development

About this detail

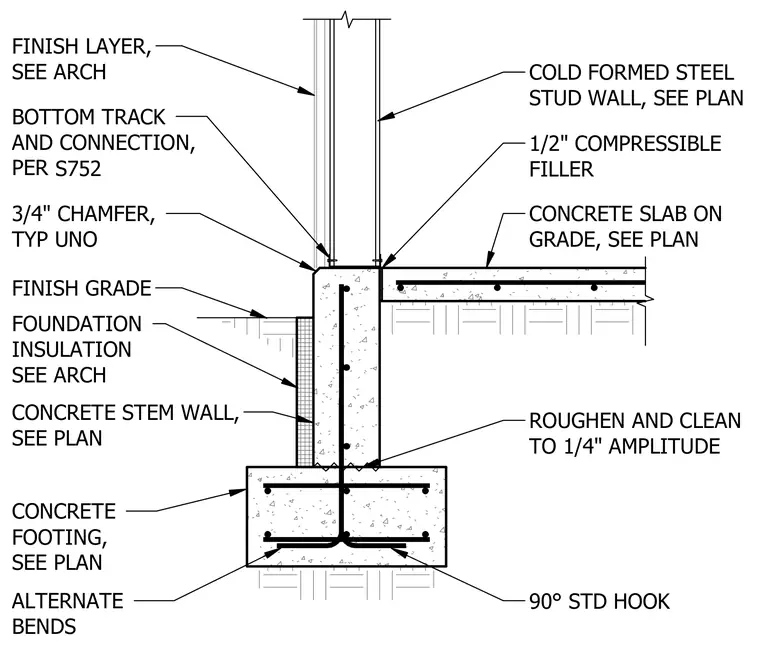

A reinforced concrete stem wall bears on a concrete footing sized per plan, with vertical reinforcing steel anchored into the footing using ninety-degree standard hooks and alternate bends. The concrete cold-joint between the stem wall and footing is roughened and cleaned to a quarter-inch amplitude. A concrete slab on grade meets the stem wall over a half-inch compressible filler joint. A cold-formed steel stud wall bears on the stem wall with its bottom track connected per sheet S752, adjacent to a three-quarter-inch chamfer at the top outside edge. Foundation insulation and finish layers are provided per architectural drawings.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
