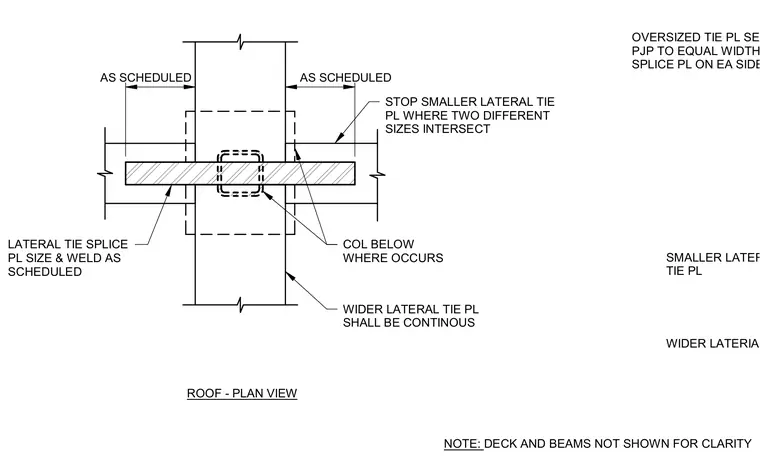

This structural plan detail shows the transition and splicing of lateral tie plates of varying widths at a column location. A wider lateral tie plate runs continuously through the column area, while smaller lateral tie plates stop where the two different sizes intersect. An oversized tie plate segment is connected with partial joint penetration welds matching the width of the tie splice plate on each side. The lateral tie splice plate size and weld are provided per the structural schedule.
OVERSIZED TIE PL SEGMENT, PJP TO EQUAL WIDTH OF TIE SPLICE PL ON EA SIDE SMALLER LATERAL TIE PL WIDER LATERIAL TIE PL AS SCHEDULED AS SCHEDULED STOP SMALLER LATERAL TIE PL WHERE TWO DIFFERENT SIZES INTERSECT COL BELOW WHERE OCCURS WIDER LATERAL TIE PL SHALL BE CONTINOUS LATERAL TIE SPLICE PL SIZE & WELD AS SCHEDULED ROOF - PLAN VIEW NOTE: DECK AND BEAMS NOT SHOWN FOR CLARITY
