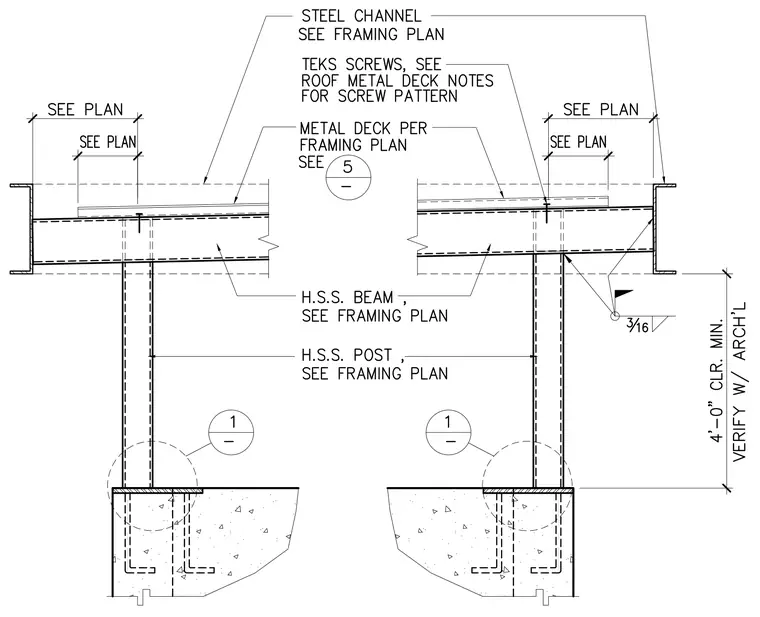

Hollow structural section posts connect to concrete foundations at the base and support hollow structural section beams at the top. Metal decking spans across the beams and is secured with self-drilling Teks screws. Steel channels tie into the framing assembly per the structural framing plan. A three-sixteenths inch fillet weld secures the beam-to-post connection.
