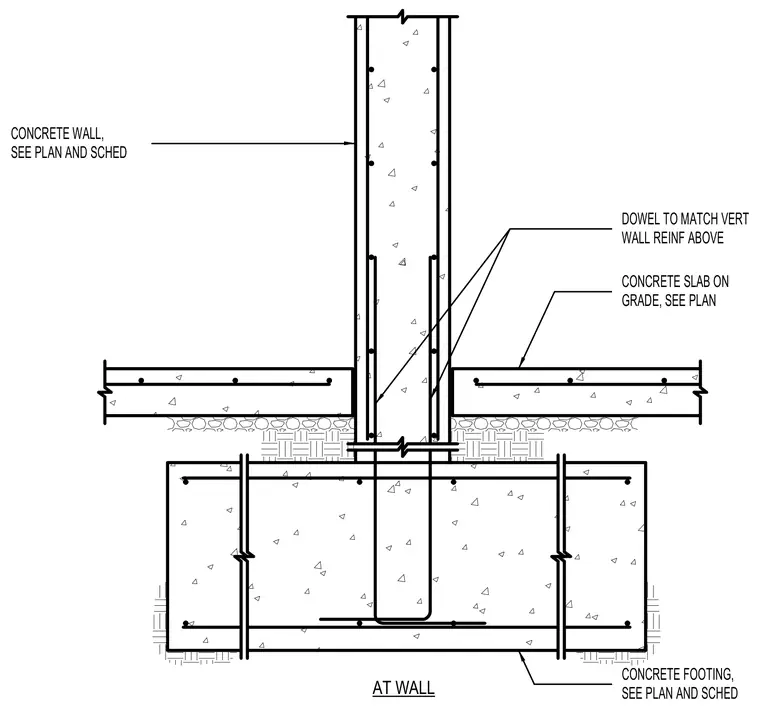

A concrete wall extends upward from a continuous concrete footing, reinforced with vertical steel bars sized per structural plans and schedules. Dowels extending from the footing lap splice with the vertical wall reinforcement. A concrete slab on grade abuts the wall assembly, supported on compacted subgrade. The concrete wall thickness, footing dimensions, and rebar sizes are specified on the architectural and structural plans.
CONCRETE SLAB ON GRADE, SEE PLAN DOWEL TO MATCH VERT WALL REINF ABOVE CONCRETE WALL, SEE PLAN AND SCHED AT WALL CONCRETE FOOTING, SEE PLAN AND SCHED
