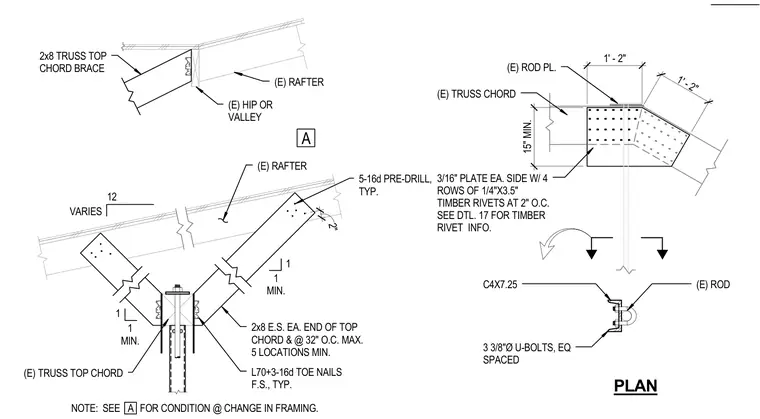

Steel side plates fastened with timber rivets provide bracing at an existing truss top chord. A three-sixteenths inch plate is provided on each side with four rows of one-quarter by three-and-a-half-inch timber rivets at two inches on center, supplemented by a channel section secured with three-eighths-inch diameter U-bolts. Existing rafters and truss chords are tied together using two-by-eight members at each end and thirty-two inches on center maximum with pre-drilled sixteen-penny nails and toe nails. Additional bracing members and rod plates are integrated as shown per plan.
(E) ROD PL. (E) TRUSS CHORD 1' - 2" 1' - 2" 15" MIN. 3/16" PLATE EA. SIDE W/ 4 ROWS OF 1/4"X3.5" TIMBER RIVETS AT 2" O.C. SEE DTL. 17 FOR TIMBER RIVET INFO. PLAN 3 3/8"Ø U-BOLTS, EQ SPACED C4X7.25 (E) ROD 2" 1 1 MIN. 1 1 MIN. VARIES 12 (E) RAFTER 5-16d PRE-DRILL, TYP. 2x8 E.S. EA. END OF TOP CHORD & @ 32" O.C. MAX. 5 LOCATIONS MIN. NOTE: SEE FOR CONDITION @ CHANGE IN FRAMING. A L70+3-16d TOE NAILS F.S., TYP. (E) TRUSS TOP CHORD A (E) RAFTER (E) HIP OR VALLEY 2x8 TRUSS TOP CHORD BRACE
