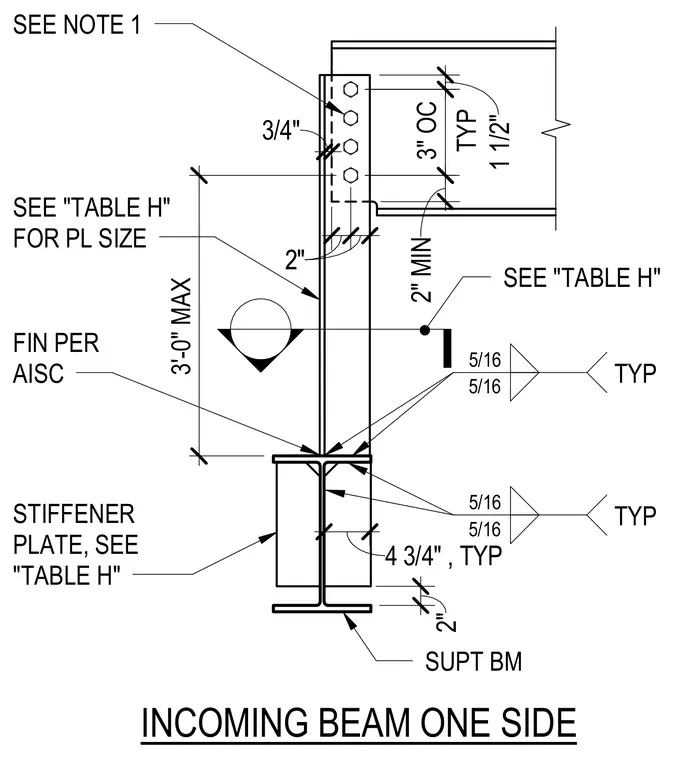

An incoming steel beam connects to one side of a supporting beam using a single-plate shear connection sized per Table H. The connection features a vertical shear tab welded with five-sixteenths inch fillet welds on typical sides, with bolts spaced at three inches on center and a one and one-half inch edge distance. A supporting beam stiffener plate is welded below with five-sixteenths inch fillet welds and detailed per Table H. All framing and connection design follows standard AISC specifications.
29 3/8" 2" INCOMING BEAM ONE SIDE SUPT BM STIFFENER PLATE, SEE "TABLE H" FIN PER AISC TYP 5/16 5/16 TYP 5/16 5/16 2"2" 1 1/2" 2" MIN 9" 4 3/4" , TYP SEE NOTE 1 SEE "TABLE H" FOR PL SIZE 3" OC TYP 3'-0" MAX 3/4" SEE "TABLE H"
