Structural · S-5BY9Y

Concrete Retaining Wall Foundation and Footing Detail

Materials

Concrete

Elements

Walls Retaining Walls Railings / Guards Floors / Slabs Arches Drainage Anchors / Embeds Reinforcing

Connections

Rebar Splice / Development

About this detail

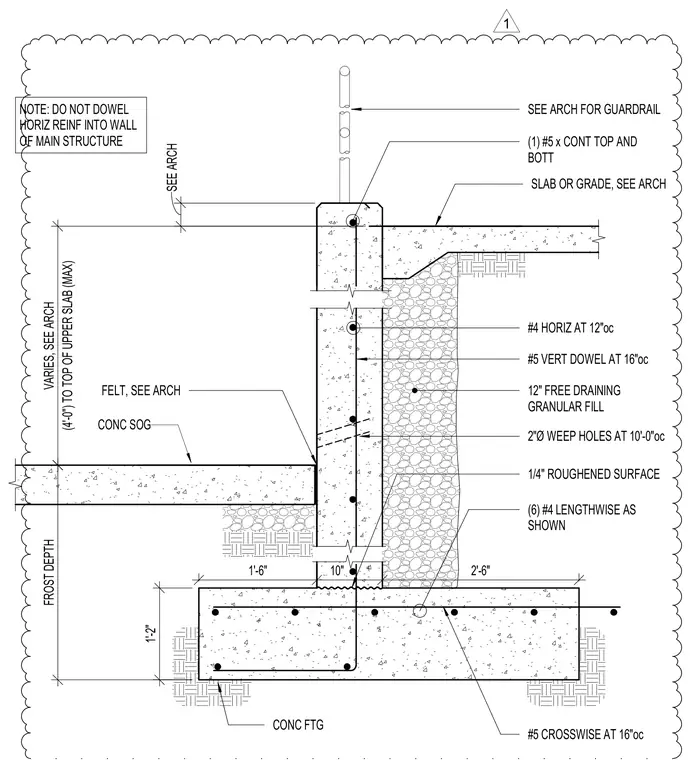

A reinforced concrete retaining wall bears on a concrete footing reinforced with six number four lengthwise bars as shown and number five crosswise bars at sixteen inches on center. The ten-inch-thick concrete wall features vertical number five dowels at sixteen inches on center, horizontal number four bars at twelve inches on center, and a one-quarter-inch roughened surface joint at the footing interface. A twelve-inch free-draining granular fill zone backs the wall, incorporating two-inch-diameter weep holes spaced at ten feet on center. At the top and mid-height, the wall interfaces with a concrete slab-on-grade separated by felt per architectural drawings, with continuous number five top and bottom reinforcement running through the upper slab section. Horizontal reinforcement is left undowelled into the main structural wall per drawing notes, and a guardrail is coordinated per architectural details.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
