Reinforcing bars extend past the face of the support column or wall with a development length of Ld, extended straight unless standard hooks are necessary. Beam top and bottom reinforcement lap splices require a dimension of twelve times the bar diameter or twelve inches minimum, with a maximum offset of one to six for cranked bars. Splice spacing allows one and one-half inches or wired in contact. Bars are extended straight unless standard hooks are provided where necessary.

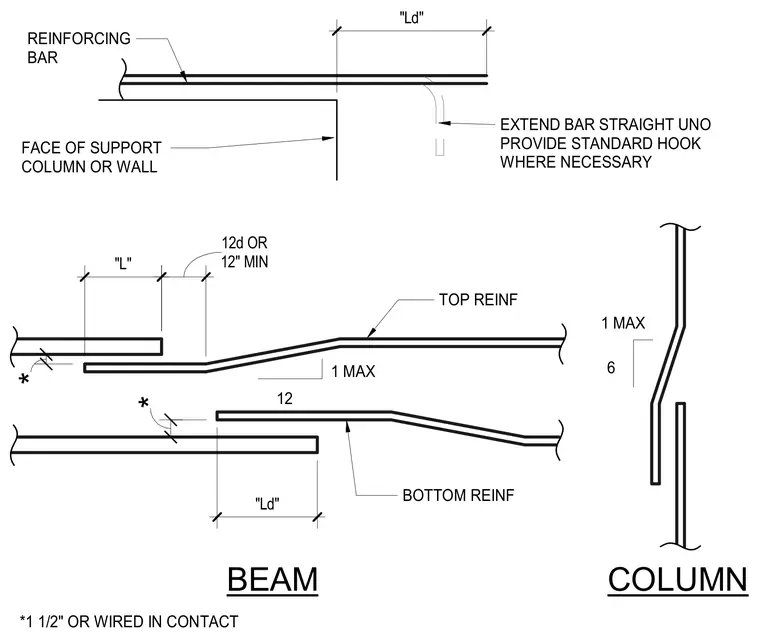

COLUMN *1 1/2" OR WIRED IN CONTACT FACE OF SUPPORT COLUMN OR WALL REINFORCING BAR BOTTOM REINF 1 MAX 12 6 TOP REINF 1 MAX EXTEND BAR STRAIGHT UNO PROVIDE STANDARD HOOK WHERE NECESSARY "Ld" "L" 12" MIN 12d OR * * "Ld" BEAM
