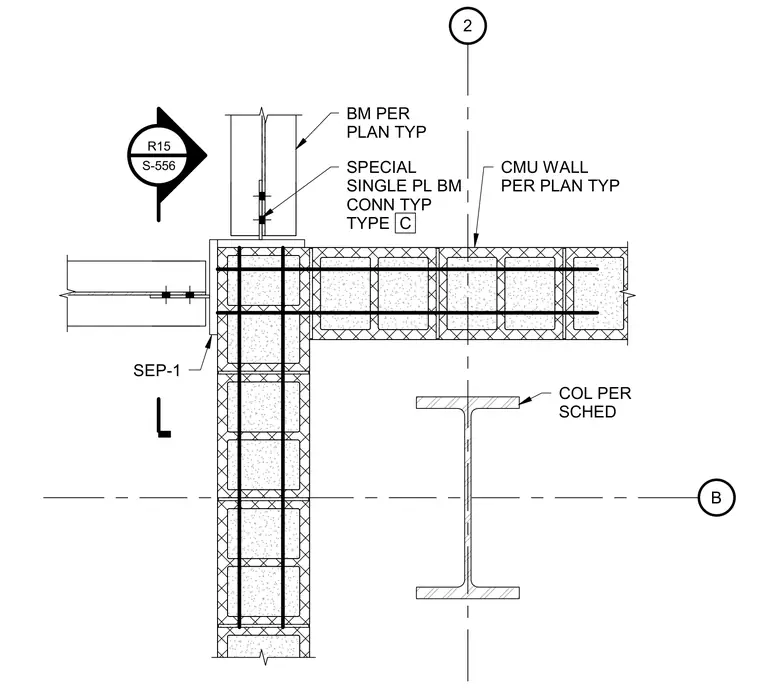

A structural steel beam frames into a concrete masonry unit wall utilizing a special single plate beam connection type C as sized per plan. The masonry wall includes reinforced grout cells and connects adjacent structural elements. A structural steel column, sized per schedule, aligns near the masonry corner.
2 B SPECIAL SINGLE PL BM CONN TYP TYPE BM PER PLAN TYP CMU WALL PER PLAN TYP COL PER SCHED SEP-1 C R15 S-556
