Structural · S-5BDSR

Column Base Plate and Foundation Detail

Materials

Concrete

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds

Connections

Base Plate / Anchorage Bolted Connection

About this detail

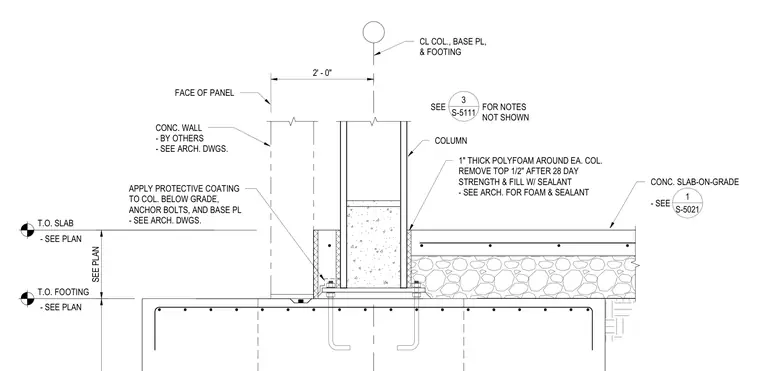

A structural steel column bears on a base plate anchored to a concrete footing with anchor bolts. A one-inch thick polyfoam wrap surrounds each column, with the top half-inch removed after twenty-eight-day strength is reached and filled with sealant. A protective coating is applied to the column below grade, anchor bolts, and base plate. A concrete slab-on-grade abuts the column assembly, and a concrete panel wall is positioned nearby.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
