Center Court Skylight Details

Materials

Elements

About this detail

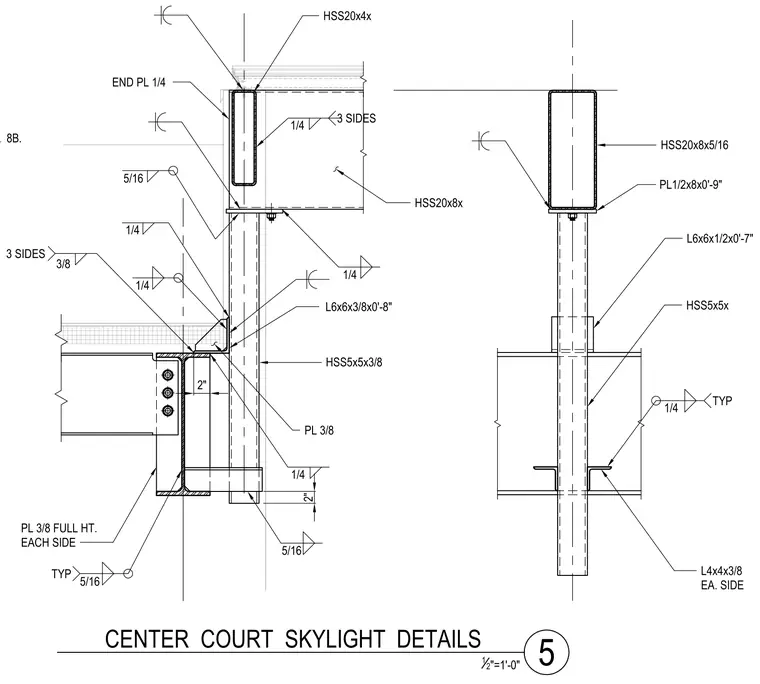

A structural steel connection for a center court skylight utilizes hollow structural sections including HSS20x8x5/16, HSS20x4x, and HSS5x5x3/8 members. The connection incorporates plate elements such as a three-eighths-inch end plate, a half-inch by eight-inch by zero-foot-nine-inch plate, and a three-eighths-inch plate welded with a quarter-inch fillet weld on three sides. Angle profiles including L6x6x1/2 by zero-foot-seven-inch, L6x6x3/8 by zero-foot-eight-inch, and L4x4x3/8 angles are provided on each side with typical five-sixteenths and quarter-inch fillet welds. Additional support includes a three-eighths-inch full height plate on each side welded with typical five-sixteenths fillet welds.
