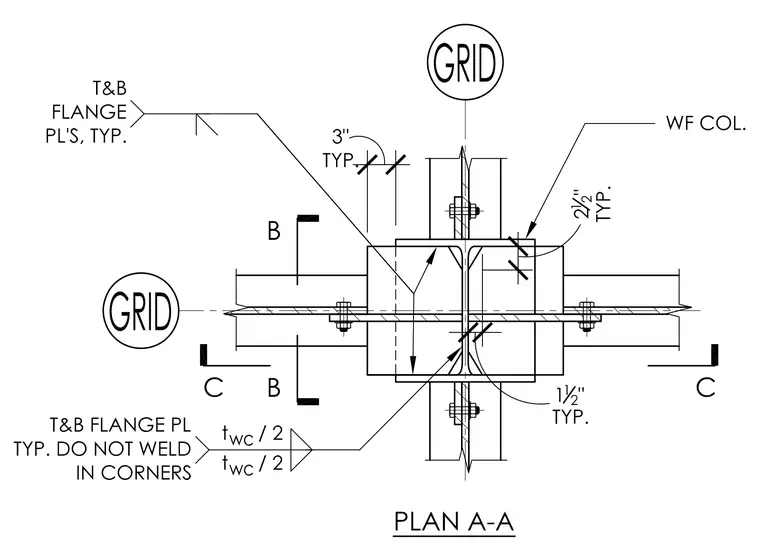

This structural plan detail shows a wide-flange steel column moment connection featuring top and bottom flange plates welded to the column flanges. The flange plates include typical dimensions with three inches of extension and are specified with top and bottom flange plates left unwelded in the corners. Additional connection elements include web plates bolted to the column web with typical clearances and fillet welds sized according to web thickness fractions. Grid lines intersect at the column center for spatial reference.
