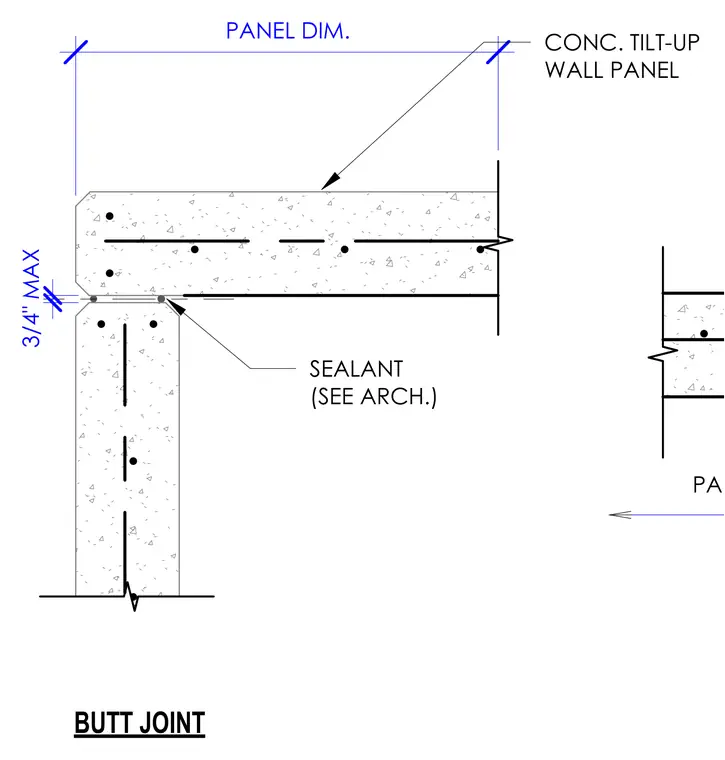

Two concrete tilt-up wall panels meet at a butt joint with a maximum three-quarters of an inch width. A joint sealant specified per architectural drawings is installed at the exterior joint interface. Panel dimensions are maintained from the edge of the concrete panels.
PANEL DIM. SEALANT (SEE ARCH.) BUTT JOINT PANEL DIM. CONC. TILT-UP WALL PANEL 3/4" MAX y __ • y
