Structural · S-5B5RX

Wood Post and Beam Connection with MST28 Strap

Materials

Elements

Columns Beams Walls Roofs Floors / Slabs Foundations / Footings Connections / Plates

About this detail

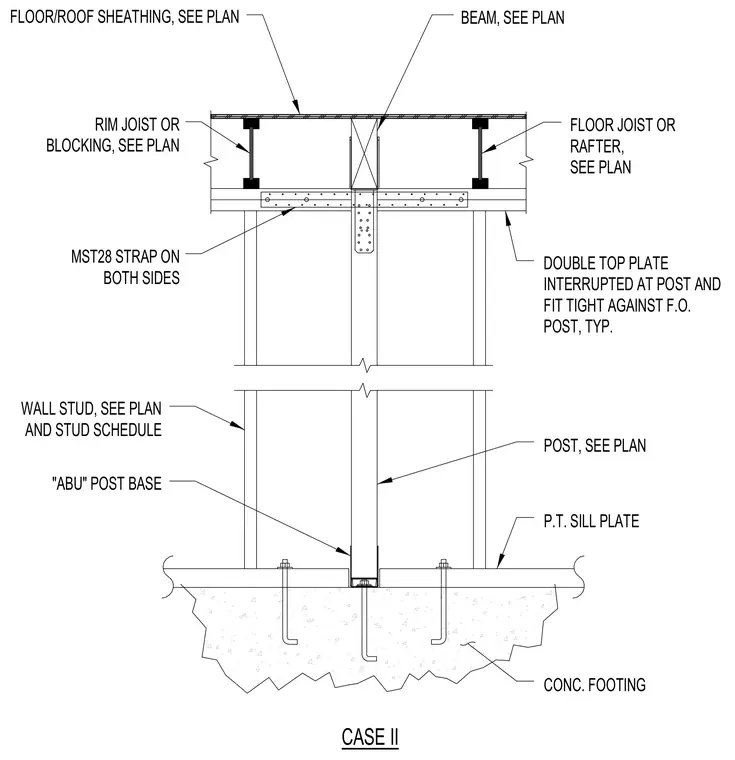

Floor or roof sheathing bears on floor joists or rafters and a central beam, which is supported by a vertical post. The double top plate is interrupted at the post and fits tight against it. An MST28 strap ties across both sides of the framing. The post extends down to an ABU post base secured to a pressure-treated sill plate and concrete footing, flanked by wall studs.
