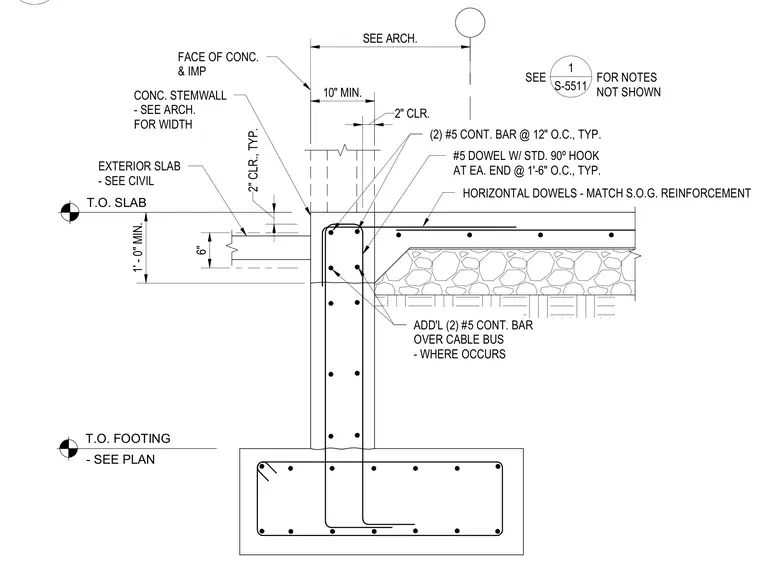

A reinforced concrete stemwall and continuous footing support a slab-on-grade with a dropped exterior slab condition. The stemwall features a ten-inch minimum width with two continuous number five bars at twelve inches on center and number five dowels with standard ninety-degree hooks at each end spaced at one foot six inches on center. Horizontal dowels tie into the slab-on-grade reinforcement matching interior slab requirements. Additional two continuous number five bars are detailed over cable bus locations where applicable, maintaining standard two-inch concrete clearances.
SEE ARCH. FACE OF CONC. & IMP CONC. STEMWALL - SEE ARCH. FOR WIDTH T.O. FOOTING - SEE PLAN T.O. SLAB (2) #5 CONT. BAR @ 12" O.C., TYP. #5 DOWEL W/ STD. 90º HOOK AT EA. END @ 1'-6" O.C., TYP. 10" MIN. 2" CLR., TYP. EXTERIOR SLAB - SEE CIVIL 2" CLR. SEE FOR NOTES NOT SHOWN 1 S-5511 HORIZONTAL DOWELS - MATCH S.O.G. REINFORCEMENT ADD'L (2) #5 CONT. BAR OVER CABLE BUS - WHERE OCCURS 1' - 0" MIN. 6"
