The construction joint for a concrete slab over metal deck is positioned within the middle third of the deck span, maintaining a minimum distance of two feet from the column centerline. For joints perpendicular to the deck span, the first and second pours divide the span between structural steel framing. For joints parallel to the deck span, the location is maintained at a minimum distance of L over eight from the beam centerline.

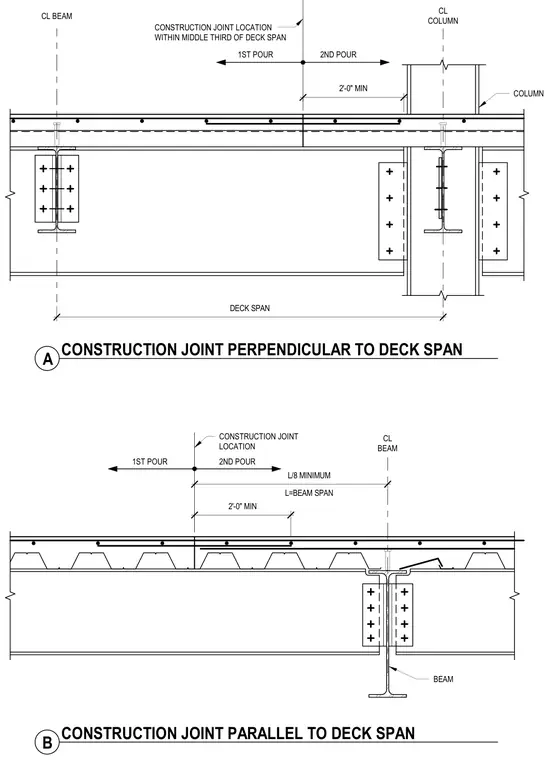

CL BEAM CL COLUMN 1ST POUR 2ND POUR CONSTRUCTION JOINT LOCATION WITHIN MIDDLE THIRD OF DECK SPAN DECK SPAN COLUMN 2'-0" MIN CL BEAM 1ST POUR 2ND POUR 2'-0" MIN CONSTRUCTION JOINT LOCATION BEAM L=BEAM SPAN L/8 MINIMUM A CONSTRUCTION JOINT PERPENDICULAR TO DECK SPAN B CONSTRUCTION JOINT PARALLEL TO DECK SPAN
