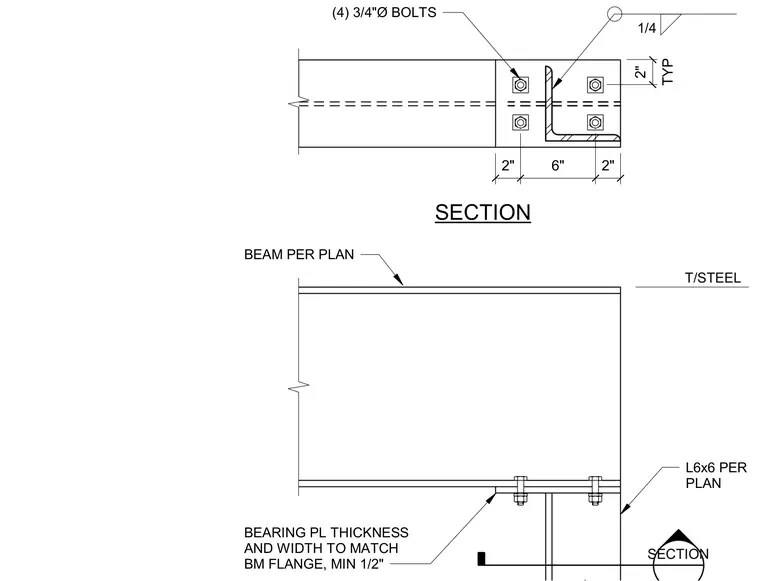

A structural steel beam frames into a vertical support utilizing an L6x6 angle profile and a bearing plate with a thickness and width matching the beam flange, measuring a minimum of one-half inch. The connection is secured with four three-quarter inch diameter bolts through the framing members. A one-quarter inch fillet weld attaches the angle component. Dimensions detail a two-inch edge clearance, a six-inch spacing, and a two-inch typical dimension.
(4) 3/4"Ø BOLTS BEAM PER PLAN L6x6 PER PLAN 1/4 BEARING PL THICKNESS AND WIDTH TO MATCH BM FLANGE, MIN 1/2" SECTION TYP 2" 2" 6" 2"
