Structural · S-5AWVH

Extended Steel Deck Support at Edge Beam and Column

Materials

Steel

Elements

Columns Beams Floors / Slabs Decks Bracing Reinforcing

Connections

Bracing Connection Welded Connection Bolted Connection Rebar Splice / Development

About this detail

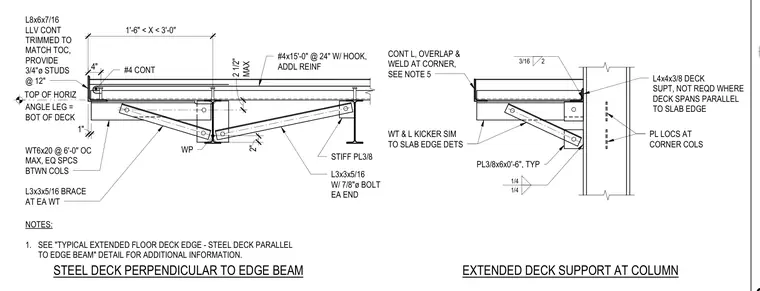

An extended steel deck support assembly perpendicular to an edge beam and at a column. The deck bears on WT6x20 shapes spaced at six feet on center maximum with equal spacing between columns, braced by L3x3x5/16 angles secured with seven-eighths-inch diameter bolts at each end. Continuous L8x6x7/16 leg-long-vertical angles trim the edge with three-quarter-inch diameter studs at twelve inches on center, and continuous number four reinforcing bars with hooks provide additional concrete slab reinforcement. Plate stiffeners measuring three-eighths of an inch are welded to the support, and corner conditions utilize L4x4x3/8 deck supports with plate locators.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
