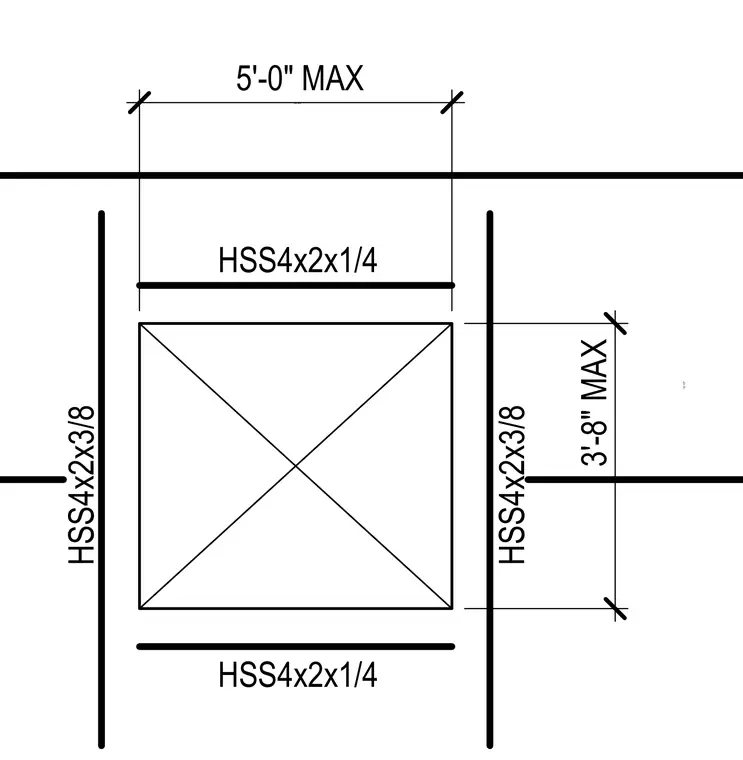

Vertical members of HSS4x2x3/8 and horizontal members of HSS4x2x1/4 comprise an arrangement of hollow structural sections. Dimension callouts indicate a maximum spacing of five feet horizontally and three feet eight inches vertically between the steel framing elements. The configuration establishes sizing constraints for structural steel framing layouts.
